Power Tailgate: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the tailgate.

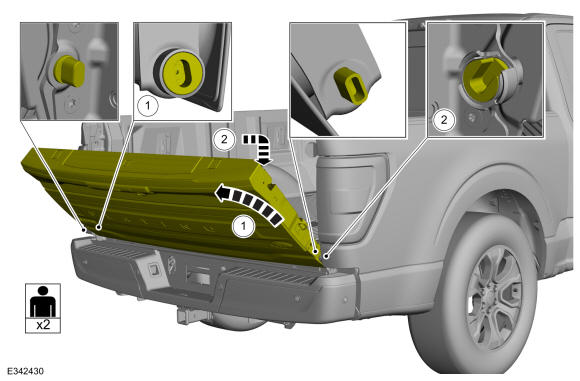

1. Position the tailgate so the LH tailgate pivot is close to the LH hinge and the tailgate is approximately 10 degrees from vertical. Keep the RH tailgate pivot close to the RH hinge, then slide the tailgate left to engage the LH pivot on the LH hinge.
2. Position the tailgate so that it is approximately 41 degrees from vertical. Push the RH pivot onto the hinge.
Courtesy of FORD MOTOR COMPANY

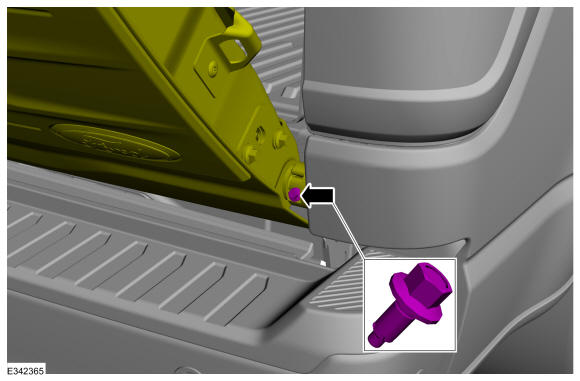

Install the retaining screw.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

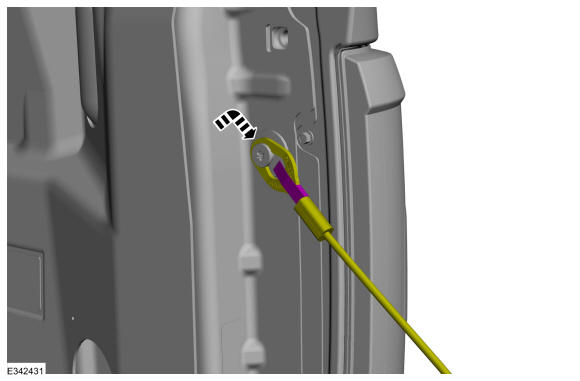

On both sides. Connect the tailgate support cable to the anchor post.

Courtesy of FORD MOTOR COMPANY

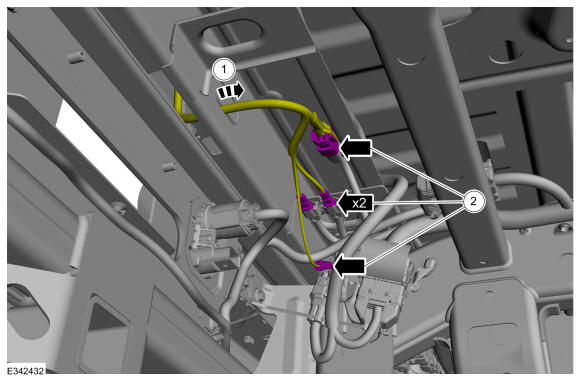

1. Slide the harness through the box crossmember.
2. Connect the electrical connectors to the main harness.
Courtesy of FORD MOTOR COMPANY
Close the power tailgate fully.
Install the tailgate damper retainer clips on the damper.

Courtesy of FORD MOTOR COMPANY

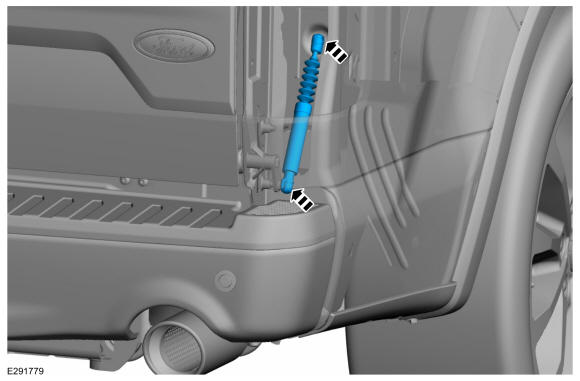

Install the tailgate damper and press the ball sockets on to the pivot bolts until fully seated.

Courtesy of FORD MOTOR COMPANY
Install the RH rear lamp assembly. Refer to: Rear Lamp Assembly .
If equipped, calibrate the rear view camera. Refer to: Parking Aid .
