Transfer Case Input Shaft Seal: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

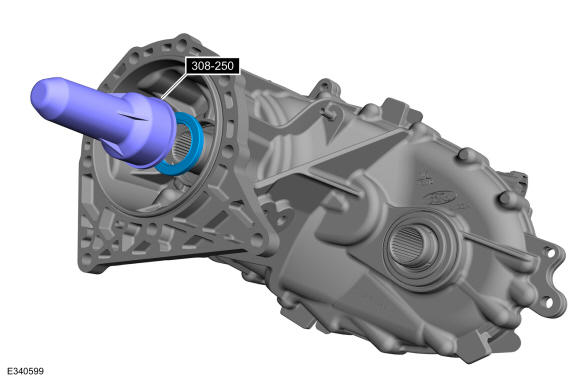

- Using the special tool, install the input shaft seal.
Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
- Install the transfer case. Refer to: Transfer Case .
