Transfer Case Front Output Shaft Seal: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the front driveshaft. Refer to: Front Driveshaft .
- If equipped. Remove the skid plate bolts and the skid plate.

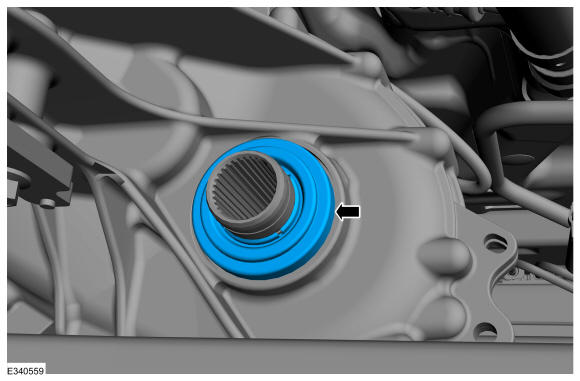

- Remove the front output shaft seal dust cover.

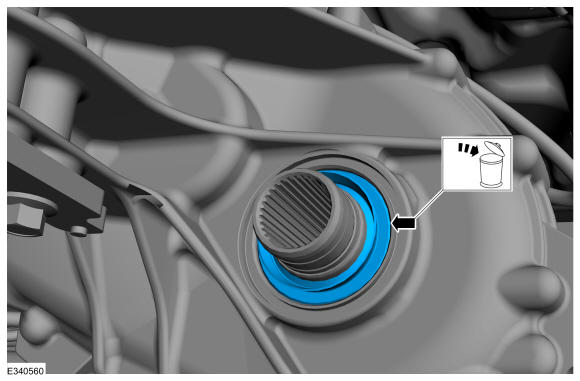

- Remove and discard the front output shaft seal.
