Transfer Case Front Output Shaft Seal: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

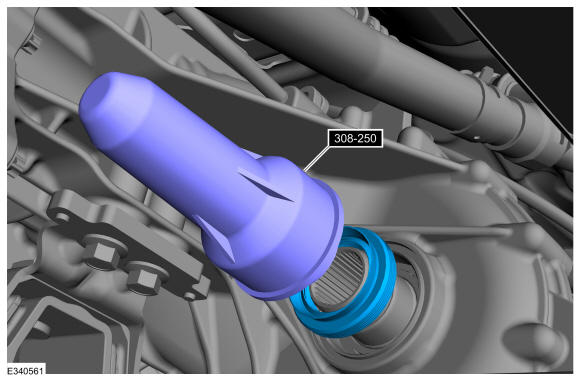

- Using the special tool, install the front output shaft seal.
Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
- Install the front output shaft seal dust cover.
- If equipped. Install the skid plate bolts and the skid plate.
Torque
: 177 lb.in (20 Nm)
- Install the front driveshaft. Refer to: Front Driveshaft .
