Gear Shift Module (GSM) - Vehicles With: Console Shift: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

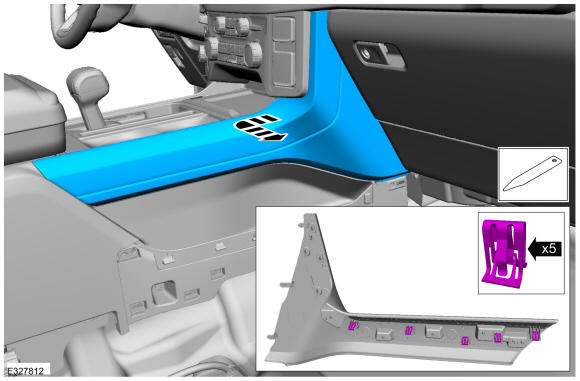

Release the clips and remove the floor console lower RH trim panel.

Courtesy of FORD MOTOR COMPANY

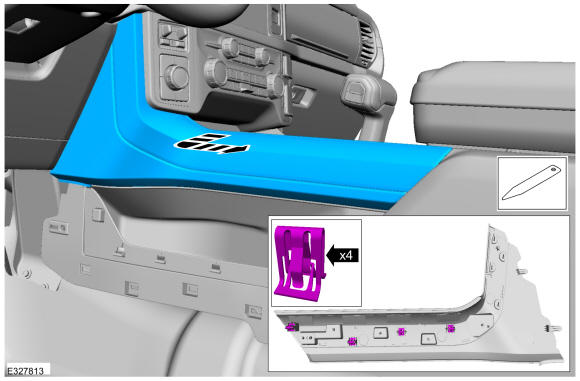

Release the clips and remove the floor console upper RH trim panel.

Courtesy of FORD MOTOR COMPANY

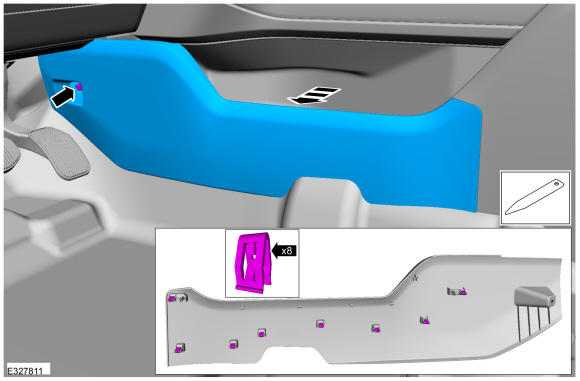

Remove the screw, release the clips and remove the floor console lower LH trim panel.

Courtesy of FORD MOTOR COMPANY

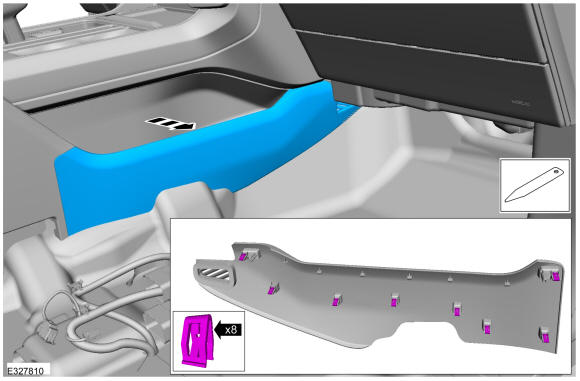

Release the clips and remove the floor console upper LH trim panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the LH electrical connectors.

Courtesy of FORD MOTOR COMPANY
Disconnect the RH electrical connector.

Courtesy of FORD MOTOR COMPANY
1. Position the front seats forward.
2. Remove the floor console bolts.
Courtesy of FORD MOTOR COMPANY
Position the front seats back.

Courtesy of FORD MOTOR COMPANY

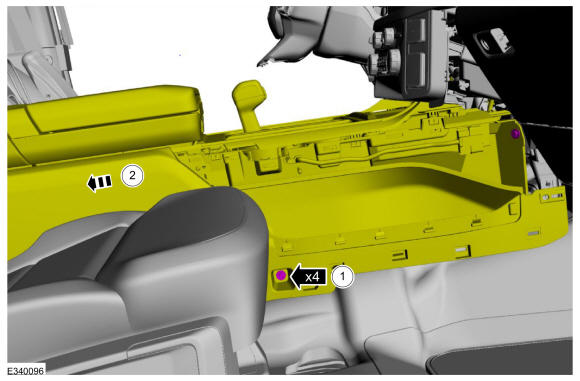

1. Remove the floor console bolts.
2. Position the floor console towards the rear of the vehicle.
Courtesy of FORD MOTOR COMPANY

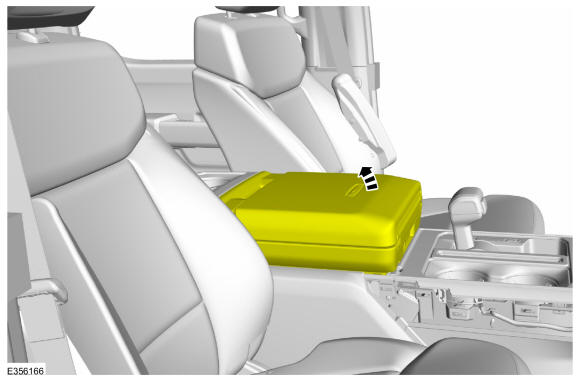

Open the floor console door.

Courtesy of FORD MOTOR COMPANY

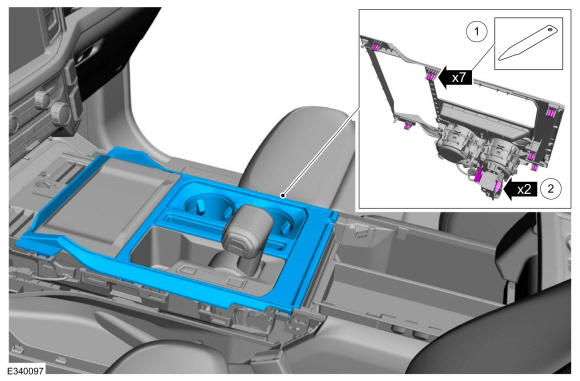

Remove the floor console top trim panel.
1. Release the clips and detach the top floor console trim panel.
2. Disconnect the electrical connectors and remove the top floor console trim panel.
Courtesy of FORD MOTOR COMPANY
Remove the GSM stow mat.

Courtesy of FORD MOTOR COMPANY
Remove the GSM bolt access panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the GSM.
