Gear Shift Module (GSM) - Vehicles With: Console Shift: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

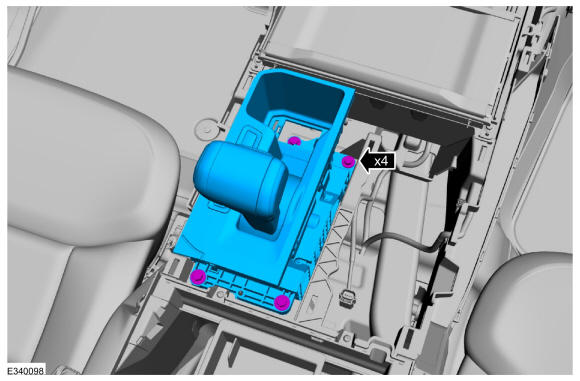

Install the GSM and the bolts.
Torque: 40 lb.in (4.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the GSM bolt access panel.

Courtesy of FORD MOTOR COMPANY

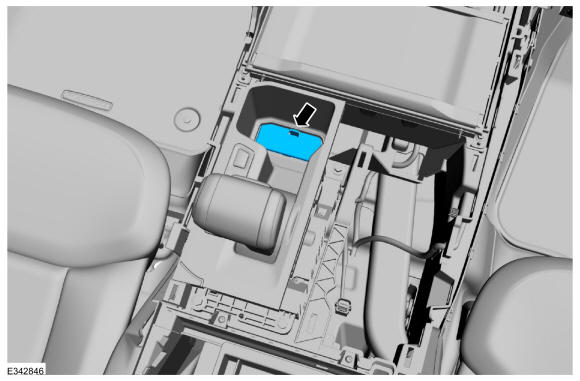

Install the GSM stow mat.

Courtesy of FORD MOTOR COMPANY

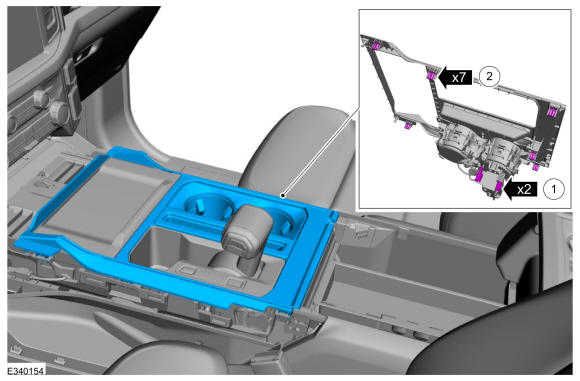

Install the floor console top trim panel.
1. Connect the electrical connectors.
2. Attach the top floor console trim panel clips.
Courtesy of FORD MOTOR COMPANY

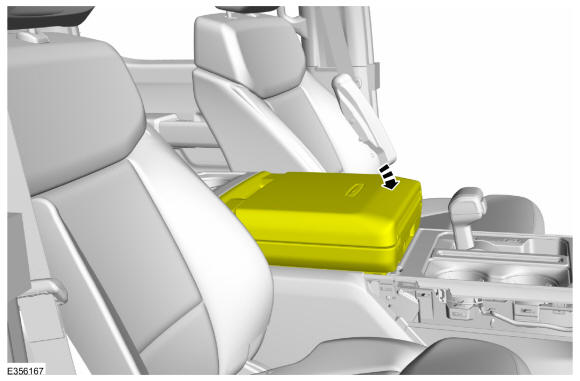

Close the floor console door.

Courtesy of FORD MOTOR COMPANY

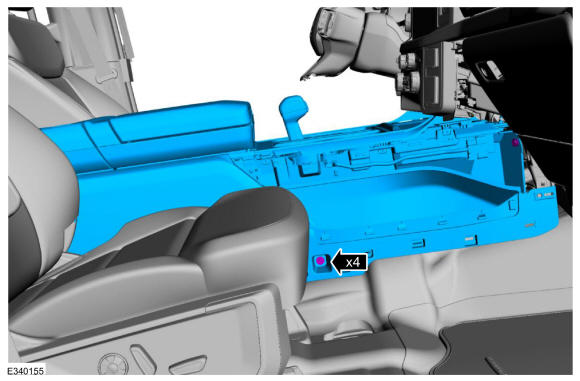

Install the floor console bolts.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

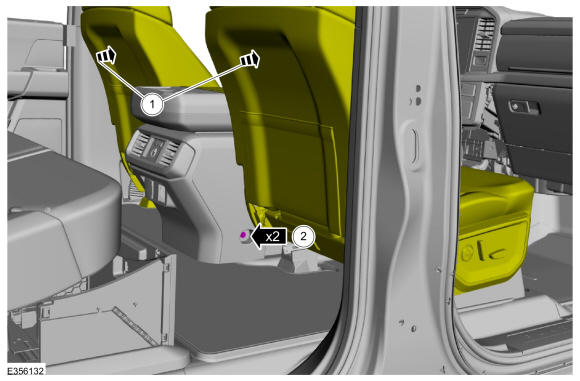

1. Position the front seats forward.
2. Install the floor console bolts.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY

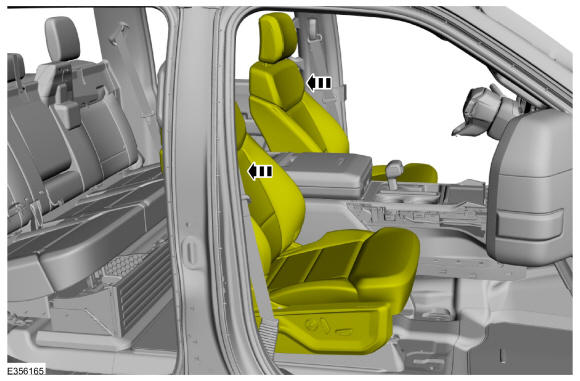

Position the front seats back.

Courtesy of FORD MOTOR COMPANY

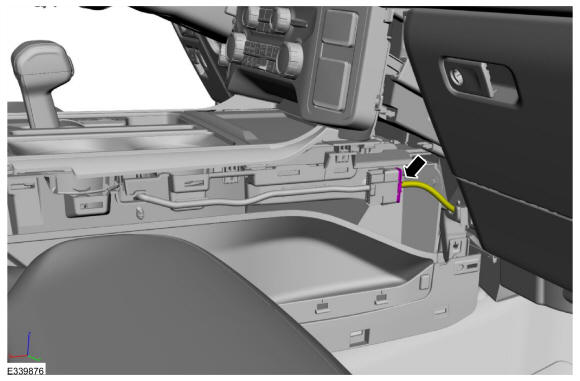

Connect the RH electrical connector.

Courtesy of FORD MOTOR COMPANY

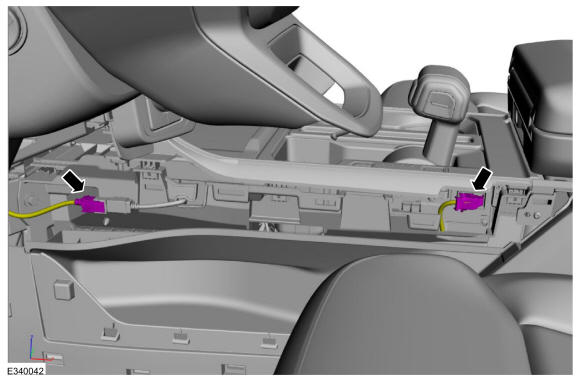

Connect the LH electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the floor console upper LH trim panel.

Courtesy of FORD MOTOR COMPANY
Install the floor console lower LH trim panel and the screw.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

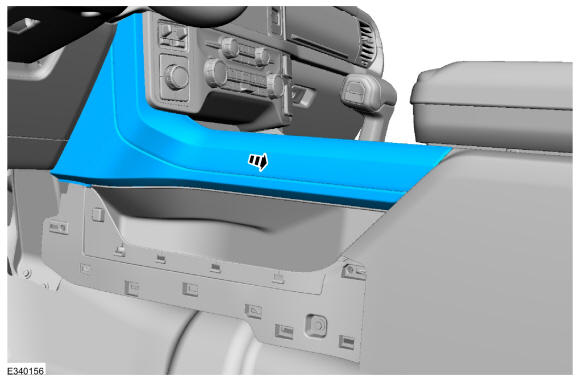

Install the floor console upper RH trim panel.

Courtesy of FORD MOTOR COMPANY

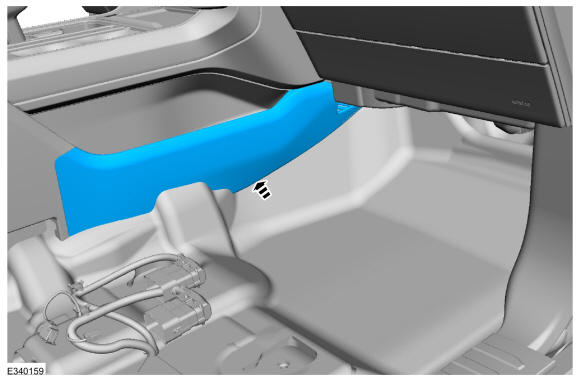

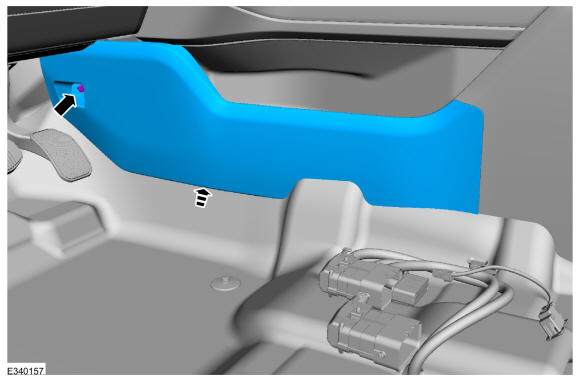

Install the floor console lower RH trim panel.
