Stay in Neutral

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Activation

  1. NOTE: If the vehicle has a discharged battery, an external power source is required. If the battery discharges while in Stay in Neutral Mode, the park lock pawl solenoid will release and the transmission will return to Park. Do not tow the vehicle in this mode.

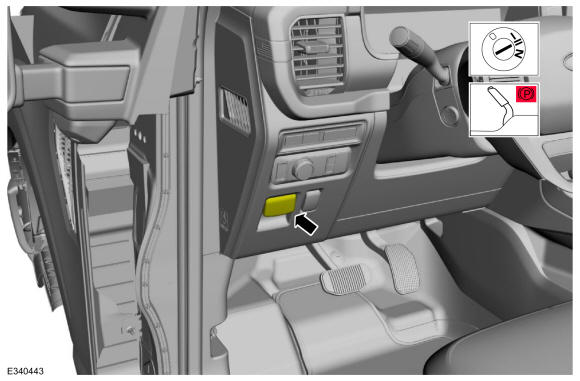

    Apply the parking brake.

    GFD559789Courtesy of FORD MOTOR COMPANY
  2. While applying the brakes, shift into the N position.
  3. NOTE: A confirmation message appears when your vehicle enters the mode.

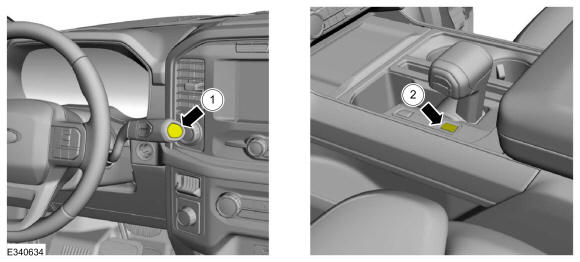

    Press the M button within 5 seconds to enter Stay in Neutral Mode.

    1. Vehicles With: Column Shift
    2. Vehicles With: Console Shift

    GFD559790Courtesy of FORD MOTOR COMPANY
  4. To exit Stay in Neutral Mode, press the brake pedal and shift to P, or if the engine is running press the brake pedal and shift to any other gear.
