Transmission Fluid Heat Exchanger: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

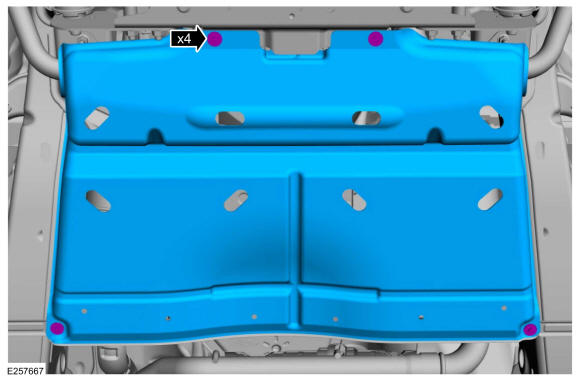

  2. If equipped, remove the retainers and splash shield.
    GFD559751Courtesy of FORD MOTOR COMPANY
    1. Disconnect the transmission park manual release cable from the transmission lever.
    2. Remove and discard the bolt and position aside the cable and bracket.
    GFD559752Courtesy of FORD MOTOR COMPANY
    1. Release the harness retainer tab.
    2. Slide the harness retainer off the fluid heat exchanger.
    GFD559753Courtesy of FORD MOTOR COMPANY
  5. Remove the transmission fluid heat exchanger nuts.
    GFD559754Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

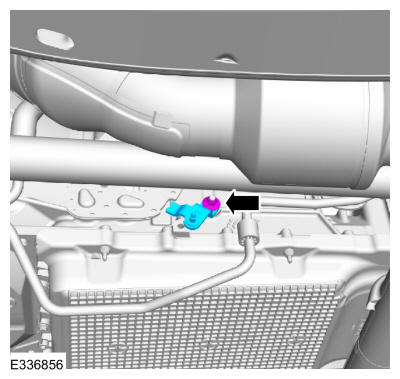

  6. Remove the nut and the park manual release lever.
    GFD559755Courtesy of FORD MOTOR COMPANY

    All vehicles

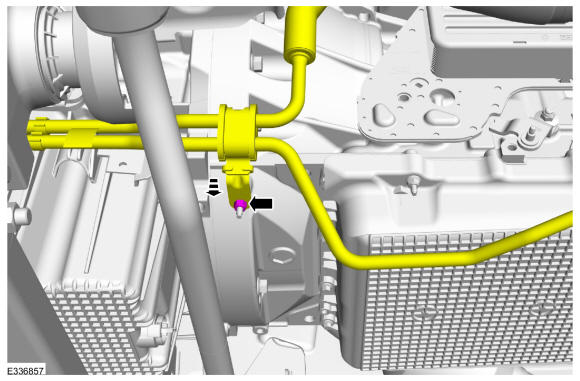

  7. Remove the coolant tube hanger nut and separate the hanger from the stud bolt.
    GFD559756Courtesy of FORD MOTOR COMPANY

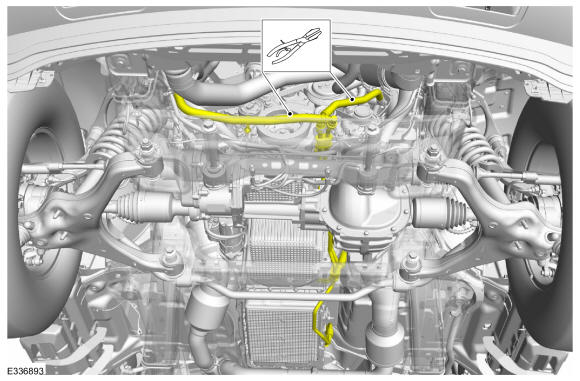

  8. Clamp the coolant inlet and outlet hoses at the front of the engine.

    Use the General Equipment: Hose Clamp(s)

    GFD559757Courtesy of FORD MOTOR COMPANY
  9. NOTE: Be prepared to collect escaping fluid.

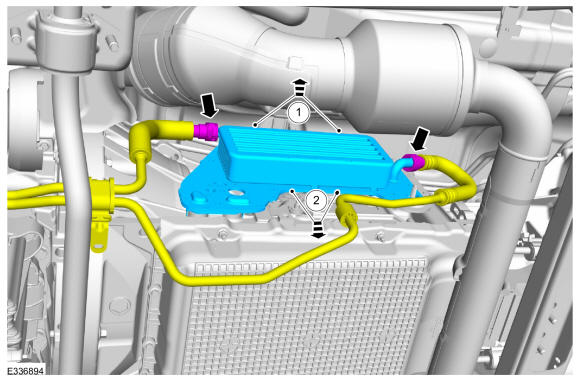

    1. Separate the transmission fluid heat exchanger from the transmission case.
    2. Lower the transmission fluid heat exchanger to disconnect the hoses and remove it from the vehicle.

GFD559758Courtesy of FORD MOTOR COMPANY
