Transmission Fluid Heat Exchanger Tubes - 3.0L Power Stroke Diesel: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. Seal (7D285).
2. Backing ring (7J324).
Courtesy of FORD MOTOR COMPANY

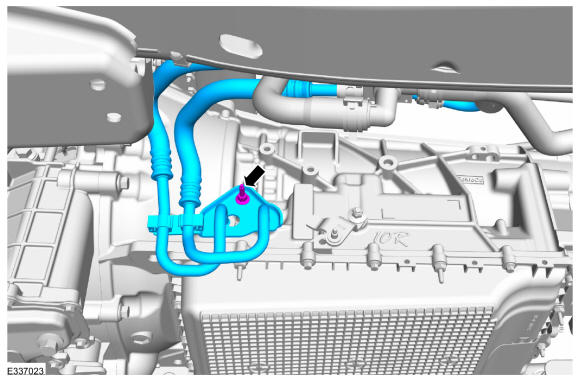

Install the transmission fluid heat exchanger tubes and the new stud bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the new cable bracket bolt.
  Torque

  : 177 lb.in (20 Nm)
2. Install the stud bolt nut.
  Torque

  : 80 lb.in (9 Nm)
3. Connect the transmission park manual release cable to the transmission lever.
Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid heat exchanger tubes to the transmission fluid heat exchanger.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid tube secondary latches.

Courtesy of FORD MOTOR COMPANY
Check and adjust the transmission fluid level as necessary. Refer to: Transmission Fluid Level Check .
If equipped, install the splash shield and the retainers.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
