Transmission Fluid Heat Exchanger - 3.0L Power Stroke Diesel: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the bolts, the retainer and the shield.
- Remove the transmission fluid tube secondary latches.
-
NOTE: Be prepared to collect escaping fluid.

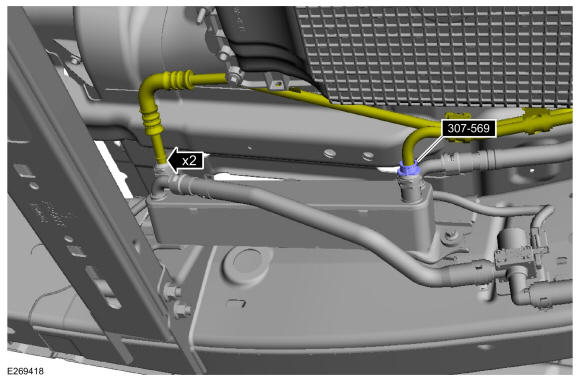

Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler.
Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
-
NOTE: Be prepared to collect escaping fluid.
Clamp and disconnect the transmission fluid cooler coolant hoses from the transmission fluid cooler.
Use the General Equipment: Hose Clamp(s)
- Disconnect the harness retainers.
- Remove the bolts and the transmission fluid cooler.
