Section 705 (Automatic Transmission - 10-Speed Automatic Transmission - 10R80 (Specifications - Diagnosis & Testing))
>>
Description And Operation
>>
Transmission Description - System Operation and Component Description
>>

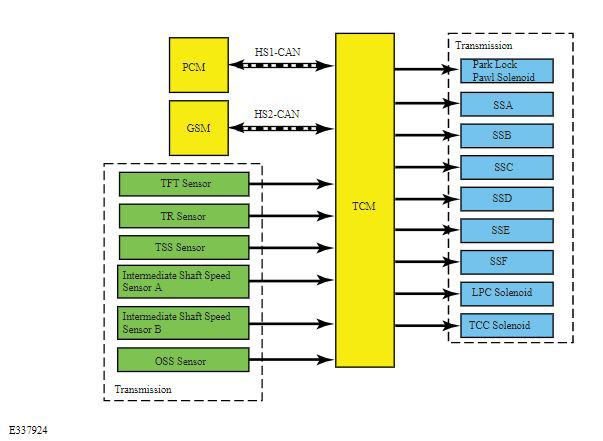

System Diagram
>>
Diesel Engines
Diesel Engines
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
