6th Gear

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

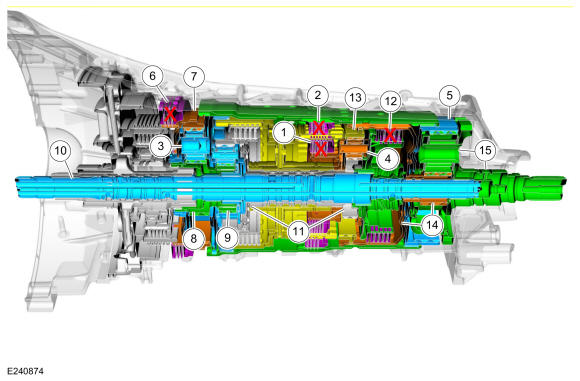

Item	Description
1	D clutch
2	F clutch
3	Planetary carrier No. 1
4	Planetary carrier No. 3
5	Ring gear No. 4
6	A clutch
7	Ring gear No. 1
8	Sun gear No. 1
9	Sun gear No. 2
10	Input shaft
11	Ring gear No. 2 and sun gear No. 3
12	E clutch
13	Ring gear No. 3
14	Shell and sun gear No. 4
15	Output shaft and planetary carrier No. 4

The D clutch and F clutch are applied effectively locking the planetary carrier No. 1, the planetary carrier No. 3, and the ring gear No. 4 together. The A clutch is holding the ring gear No. 1. The 2 inputs to the planetary gear set No. 1 cause the sun gear No. 1 and the sun gear No. 2 to rotate at a 0.44 overdrive ratio. The input shaft turns the planetary carrier No. 2 and causes the ring gear No. 2 and sun gear No. 3 to rotate at a 3.58 ratio. The E clutch is applied to transfer torque from the input shaft to the ring gear No. 3 and the shell and sun gear No. 4. The 2 inputs to the 3rd planetary gear set cause the planetary carrier No. 3 and ring gear No. 4 to rotate at a 1.38 ratio. The 2 inputs to the 4th planetary gear set cause the output shaft and planetary carrier No. 4 to rotate at a 1.28 ratio.
