3rd Gear
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

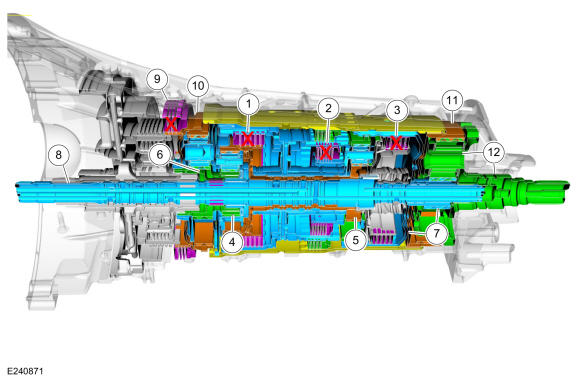

| Item | Description |
|---|---|
| 1 | C clutch |
| 2 | D clutch |
| 3 | E clutch |
| 4 | Planetary gear set No. 2 |
| 5 | Planetary gear set No. 3 |
| 6 | Sun gear No. 1 |
| 7 | Shell and sun gear No. 4 |
| 8 | Input shaft |
| 9 | A clutch |
| 10 | Ring gear No. 1 |
| 11 | Ring gear No. 4 |
| 12 | Output shaft and planetary carrier No. 4 |
The C clutch, D clutch, and the E clutch are applied to provide multiple inputs at the same speed to the 2nd and 3rd planetary gears sets. These inputs effectively lock the 2nd and 3rd planetary gears sets and cause sun gear No. 1 and the shell and sun gear No. 4 to rotate at a 1:1 ratio with the input shaft. The A clutch is holding the ring gear No. 1 stationary causing the planetary carrier No. 1 and the ring gear No. 4 to rotate at a 3.11 reduction ratio. The 2 inputs to the 4th planetary gear set cause the output shaft and planetary carrier No. 4 to rotate at a 2.15 ratio.
