Torque Converter Hydraulic Circuits (TCC Applied)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

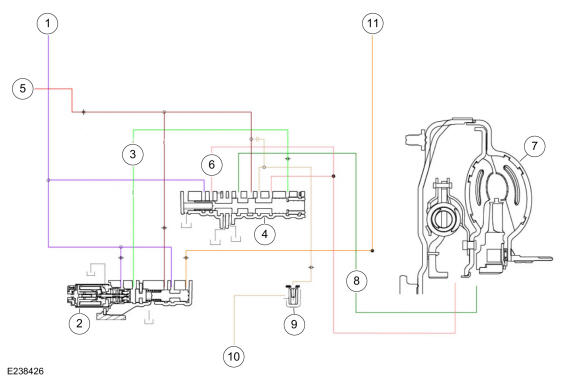

| Item | Description |
|---|---|
| 1 | Pump output |
| 2 | TCC solenoid |
| 3 | TCC control pressure |
| 4 | TCC regulator valve |
| 5 | LPC pressure |
| 6 | TCC apply pressure |
| 7 | TCC |
| 8 | TCC exhaust to TCC regulator valve |
| 9 | Torque converter anti-drainback valve |
| 10 | TCC exhaust |
| 11 | Decreased pressure from main regulator valve |
To apply to TCC, the TCC solenoid directs TCC control pressure to the TCC regulator valve, moving the valve to the left against the spring pressure. The TCC regulator valve is positioned to connect pump output to the converter apply circuit. Fluid in the apply circuit is routed to the converter and applies the TCC. Fluid exits the torque converter in the converter release circuit. The TCC regulator valve connects the converter release to exhaust and fluid returns to the sump.
When the TCC regulator valve is in the TCC applied position, the converter feed circuit is connected to the from converter circuit allowing continued fluid flow to the cooler bypass valve.
