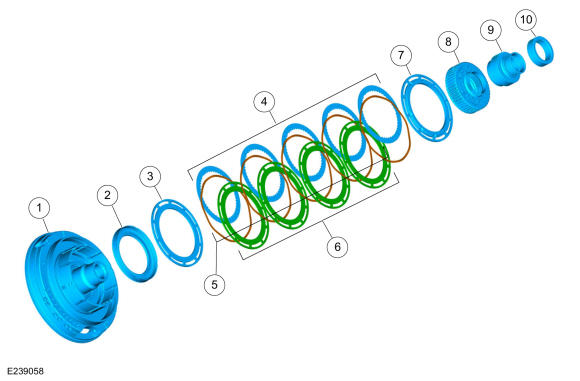

B Clutch Exploded View
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front support assembly |
| 2 |
B clutch piston |
| 3 |
B clutch apply plate |
| 4 |
B clutch friction plates |
| 5 |
B clutch separating springs |
| 6 |
B clutch steel plates |
| 7 |
B clutch pressure plate |
| 8 |
One-Way Clutch (OWC) |
| 9 |
Sun gear No. 1 |
| 10 |
Sun gear No. 2 |
