Transmission Fluid Heat Exchanger: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

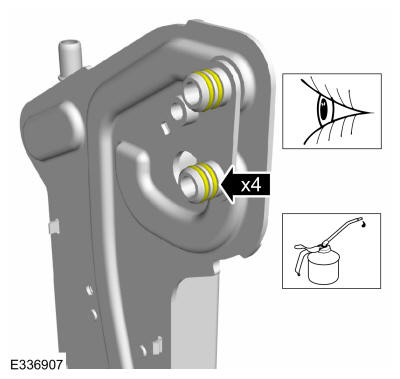

Inspect the O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals before installing the transmission fluid heat exchanger.
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY

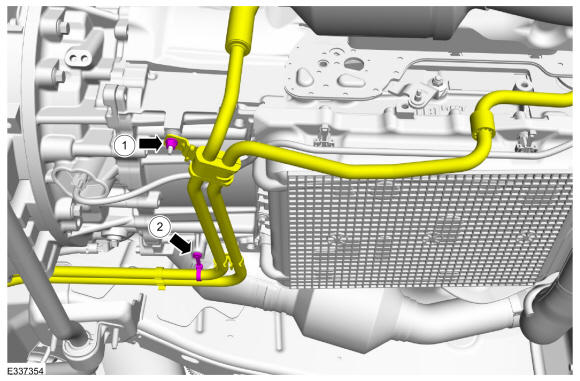

Install the transmission heat exchanger tubes completely into the transmission case and connect the hoses.

Courtesy of FORD MOTOR COMPANY

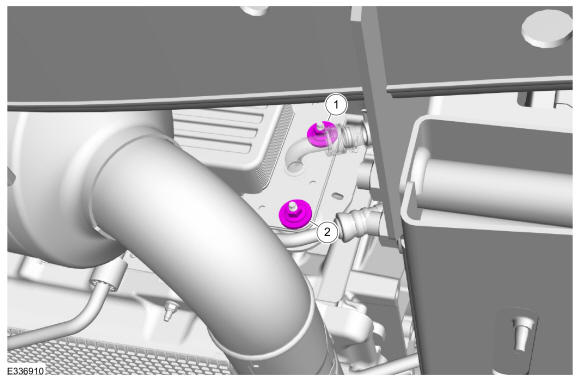

1. Install the coolant tube hanger nut on to the stud bolt.
  Torque

  : 124 lb.in (14 Nm)
2. Connect the pin-type retainer.
Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

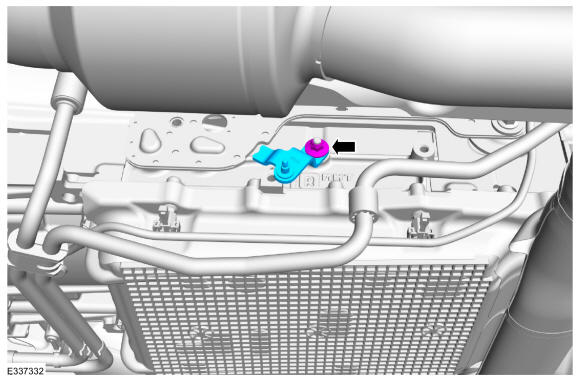

Install the park manual release lever and nut.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

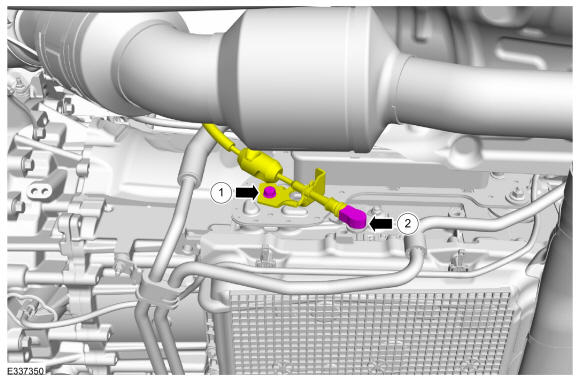

1. Loosely install the new transmission park manual release cable bracket bolt.
2. Connect the transmission park manual release cable to the transmission lever.
Courtesy of FORD MOTOR COMPANY

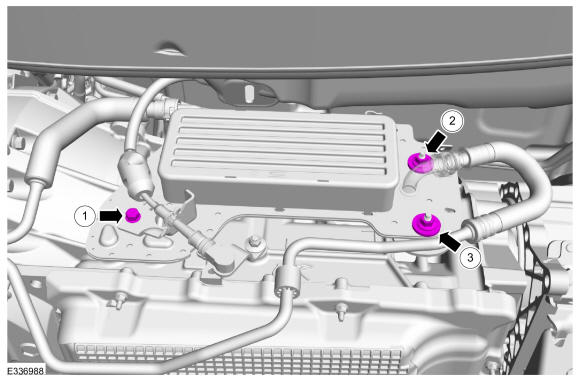

Loosely install the transmission fluid heat exchanger nuts in sequence shown in illustration.

Fig 1: Installing Transmission Fluid Heat Exchanger Nuts In Sequence
Courtesy of FORD MOTOR COMPANY

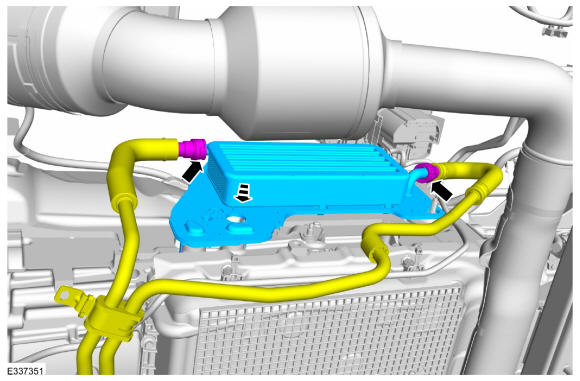

Tighten the bolt and nuts in the sequence shown in illustration.
Torque

: 177 lb.in (20 Nm)

Fig 2: Tightening Bolts and Nuts In Sequence
Courtesy of FORD MOTOR COMPANY

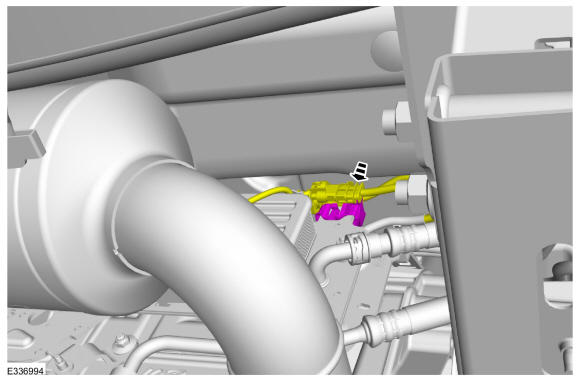

Install the harness retainer on the transmission fluid heat exchanger.

Courtesy of FORD MOTOR COMPANY
Check and adjust the engine coolant level as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Check and adjust the transmission fluid level as necessary. Refer to: Transmission Fluid Level Check .

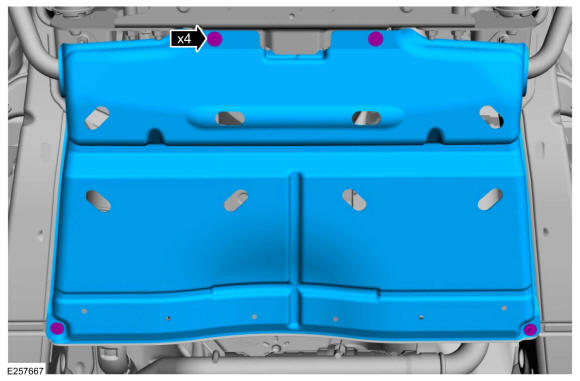

If equipped, install the splash shield and the retainers.
Torque

: 71 lb.in (8 Nm)
