2.7L EcoBoost, 3.3L Duratec-V6, 3.5L EcoBoost With: Transmission Fluid Heat Exchanger, 5.0L 32V Ti-VCT

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

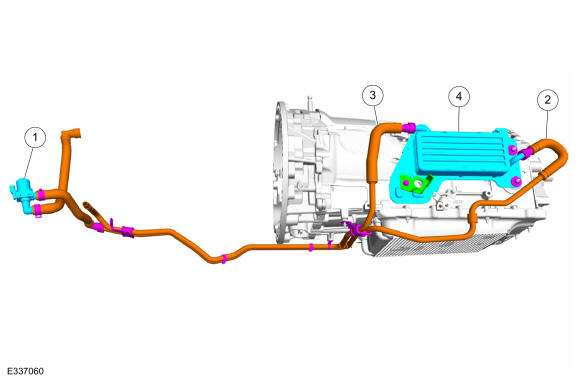

GFD559780Courtesy of FORD MOTOR COMPANY
Item Description
1 Transmission fluid heater coolant control valve
2 Transmission fluid heat exchanger coolant inlet hose
3 Transmission fluid heat exchanger coolant outlet hose
4 Transmission fluid heat exchanger
