Torque Converter Clutch (TCC) Proportional (VFS)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Normally Low Solenoid

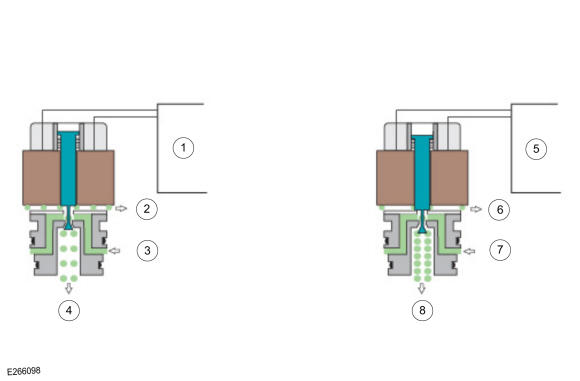

| Item | Description |
|---|---|
| 1 | Low current |
| 2 | High exhaust |
| 3 | SF circuit fluid (Supply) |
| 4 | Low pressure output |
| 5 | High current |
| 6 | Low exhaust |
| 7 | SF circuit fluid (Supply) |
| 8 | High pressure output |
The TCC solenoid is a variable force solenoid that varies hydraulic pressure by actuating a hydraulic valve. The TCC solenoid uses proportional operation. Normally low solenoids provide hydraulic pressure proportional to supplied current. A normally low solenoid outputs very low pressure with low (50 mA) or no current, while supplying high pressure with high current (850 mA).
