Hybrid Drive Unit Hydraulic Passages
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

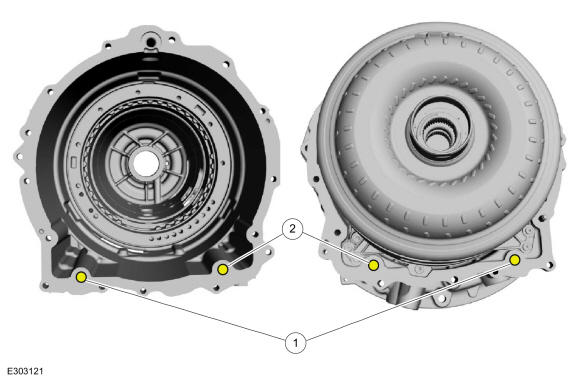

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Hybrid drive unit cooling |
| 2 |
Engine disconnect clutch |

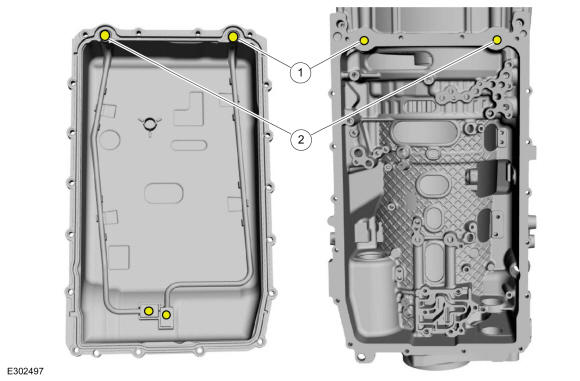

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Hybrid drive unit cooling |
| 2 |
Engine disconnect clutch |
