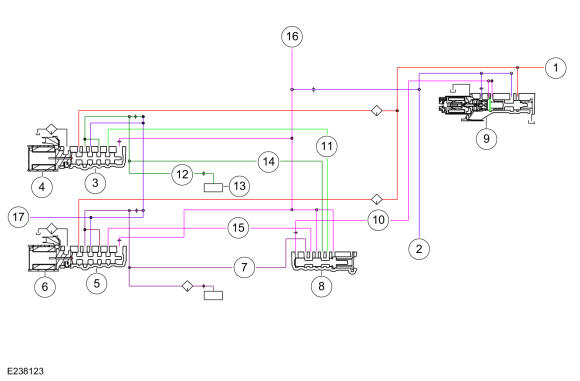

D Clutch Hydraulic Circuits
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Pump output |
| 3 | D clutch control valve |
| 4 | SSD |
| 5 | E clutch control valve |
| 6 | SSE |
| 7 | E clutch apply pressure to clutch gain control valve |
| 8 | Clutch gain control valve |
| 9 | LPC solenoid |
| 10 | LPC pressure |
| 11 | D clutch feedback pressure |
| 12 | Apply pressure to mechanical D clutch |
| 13 | Mechanical D clutch |
| 14 | D clutch apply pressure to clutch gain control valve |
| 15 | E clutch feedback pressure |
| 16 | Elevated exhaust pressure |
| 17 | Clutch exhaust |
