Valve Cover RH: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the aluminum retainer plate. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

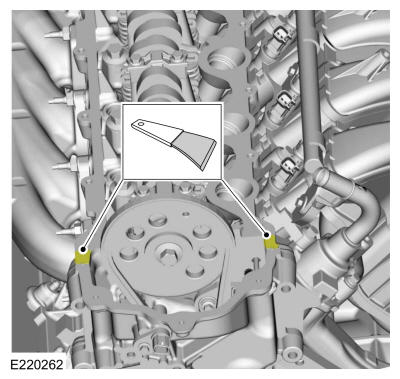

Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper
Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
-
NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure may cause future oil leakage.

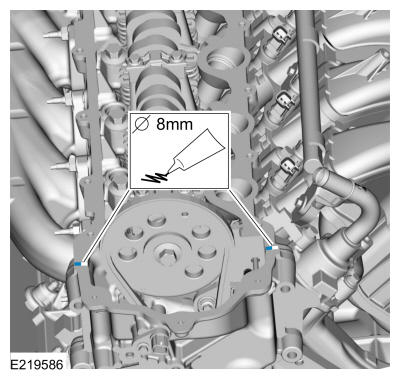

Apply a 8 mm (0.314 in) bead of silicone sealant.
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

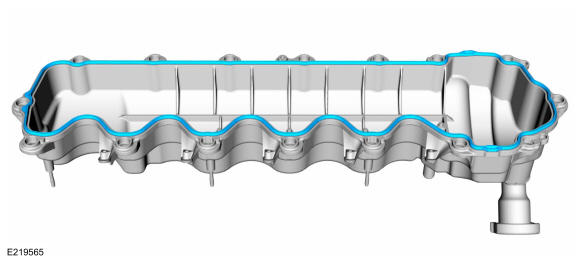

- Install the RH valve cover gasket.
-
- Install the RH valve cover and the bolts finger-tight.

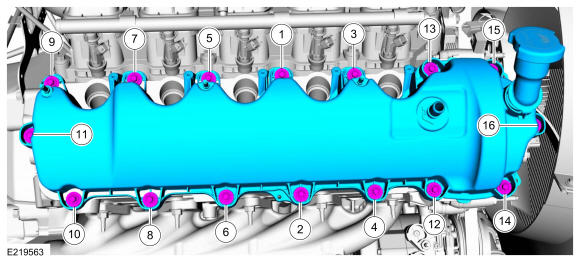

- Tighten the bolts in sequence shown.
Torque: 89 lb.in (10 Nm)
-

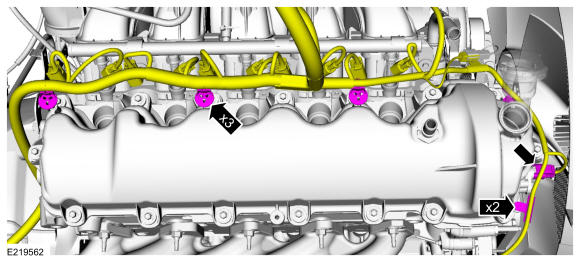

- Position the wiring harness and attach the wiring harness retainers.
- Connect the CMP sensor electrical connector.

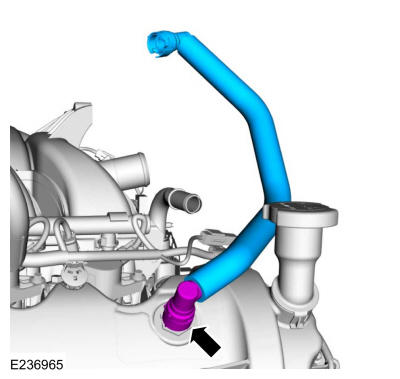

- Install the PCV tube and connect the quick connect coupling. Refer to: Quick Release Coupling
.
- Install the RH ignition coils. Refer to: Ignition Coil-On-Plug .

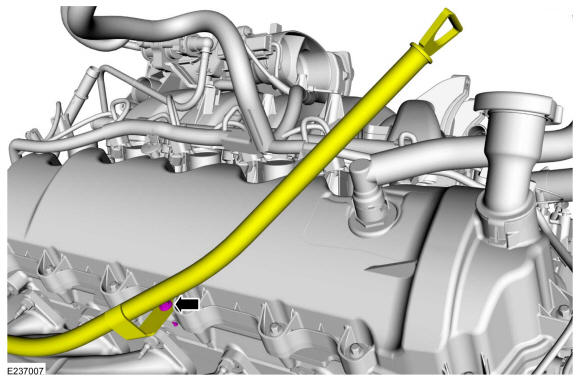

- Position the transmission filler tube and install the bolts.
Torque: 89 lb.in (10 Nm)

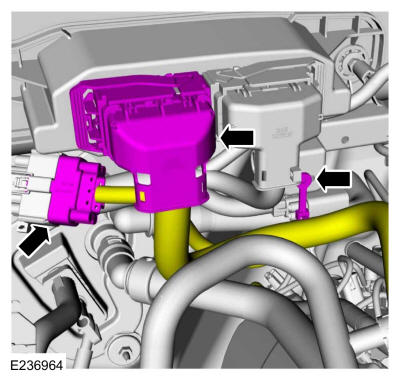

- Connect the engine wiring harness electrical connectors and attach the retainers.
- Install the following items:
- Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Air cleaner. Refer to: Air Cleaner .
