Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

- NOTE: If the oil pressure switch is to be reused, apply thread sealant.

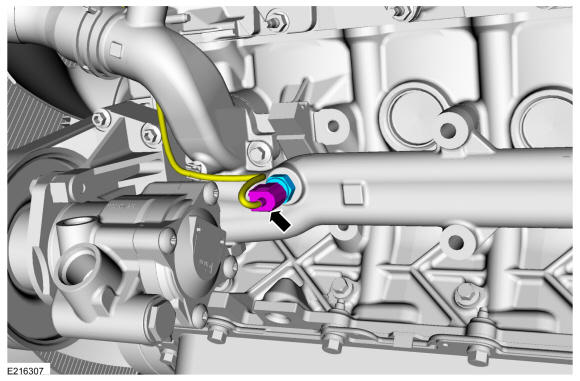

  Install the EOP switch.

  Material: Motorcraft ® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

  Torque: 159 lb.in (18 Nm)
- Connect the EOP switch electrical connector.

Courtesy of FORD MOTOR COMPANY
