Intake Manifold: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Tighten the intake manifold bolts and the stud bolt in 2 stages in sequence shown.

    Torque:

    Stage 1: 18 lb.in (2 Nm)

    Stage 2: 89 lb.in (10 Nm)

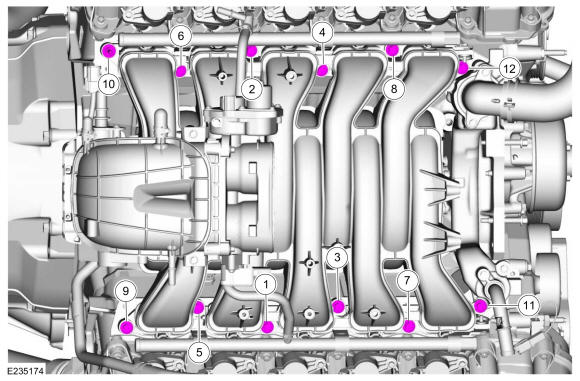

Fig 1: Intake Manifold Tightening Sequence
GFD202075Courtesy of FORD MOTOR COMPANY
