Crankshaft Rear Seal: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the flexplate. Refer to: Flexplate .
- Remove the engine rear cover plate.

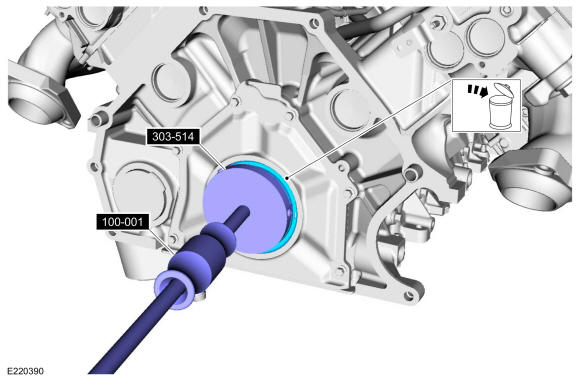

- Using the special tools, remove and discard the crankshaft oil slinger. Use Special Service Tool: 303-514 (T95P-6701-AH) Remover, Crankshaft Rear Oil Slinger., 100-001 (T50T-100-A) Slide Hammer.

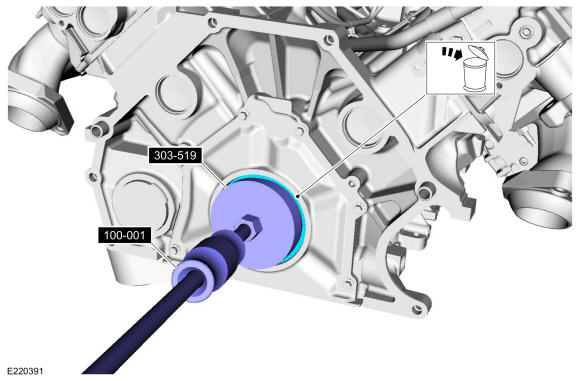

- Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal., 100-001 (T50T-100-A) Slide Hammer.
