Camshaft RH: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The camshaft procedure must be followed exactly or damage to the valves and pistons will result.

Position the crankshaft pulley timing mark indentation at the 1 o'clock position.

Courtesy of FORD MOTOR COMPANY
Remove the RH valve cover. Refer to: Valve Cover RH .
NOTE: Only use hand tools to loosen the camshaft sprocket bolt or damage may occur to the camshaft or camshaft sprocket.

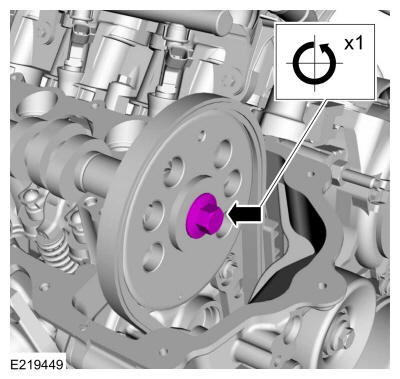

Loosen the RH camshaft sprocket bolt one full turn.

Courtesy of FORD MOTOR COMPANY
Disconnect the CMP sensor electrical connector, remove the bolt and the CMP sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: If the camshaft lobes are not positioned exactly as shown, the crankshaft will require one full clockwise rotation to position the timing mark at the 1 o'clock position.

The No. 1 cylinder camshaft exhaust lobe must be coming up on the exhaust stroke. Verify by noting the position of the 2 intake camshaft lobes and the exhaust lobe on the No. 1 cylinder.

Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into the original locations. Failure to follow these instructions may result in engine damage.

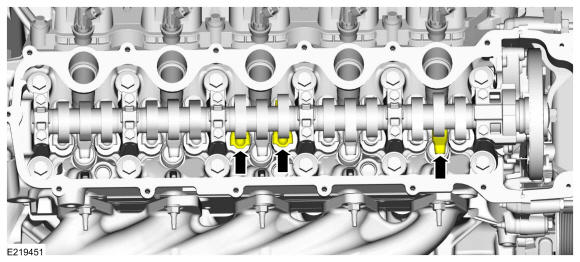

Remove only the 3 camshaft roller followers shown in the illustration from the RH cylinder head.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshaft roller followers must be installed in their original locations. Record camshaft roller follower locations. Failure to follow these instructions may result in engine damage.

NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed.

NOTE: It may be necessary to push the valve down while compressing the spring.

Using the special tool, remove only the 3 designated camshaft roller followers shown in the previous step. Use Special Service Tool: 303-1039 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft cannot be moved past the 7 o'clock position once set. Failure to follow this instruction may result in engine damage.

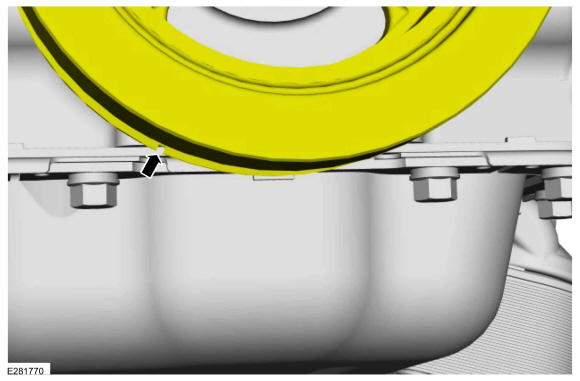

Rotate the crankshaft clockwise, as viewed from the front, positioning the crankshaft pulley timing mark indentation at the 7 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: Engine is not freewheeling. Camshaft procedure must be followed exactly or damage to valves and pistons will result.

NOTE: The Timing Chain Locking Tool must be installed square to the timing chain and the engine block.

NOTE: Front cover removed for clarity.

Install the special tool in the RH timing chain as shown. Use Special Service Tool: 303-1175 Locking Tool, Timing Chain.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove the timing chain wedge tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed.

NOTE: The timing chain must be installed in its original position onto the camshaft sprocket using the scribed marks, or damage to valves and pistons will result.

Scribe a location mark on the timing chain and the camshaft sprocket assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the front thrust camshaft bearing cap straight upward from the bearing towers or the bearing cap may be damaged from side loading.

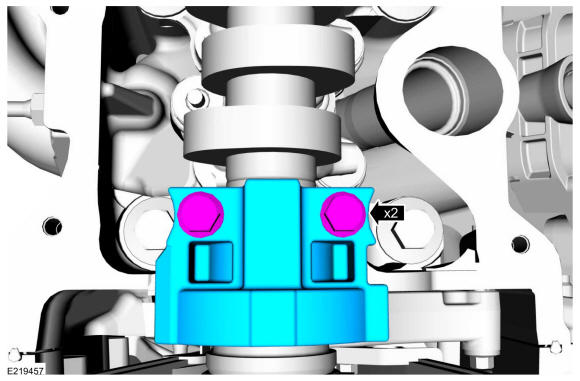

Remove the bolts and the camshaft front bearing cap.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshaft bearing caps must be installed in their original locations. Record camshaft bearing cap locations. Failure to follow these instructions may result in engine damage.

Remove the remaining bolts in the sequence shown and the camshaft bearing caps.

Fig 1: RH Camshaft Loosening Sequence
Courtesy of FORD MOTOR COMPANY

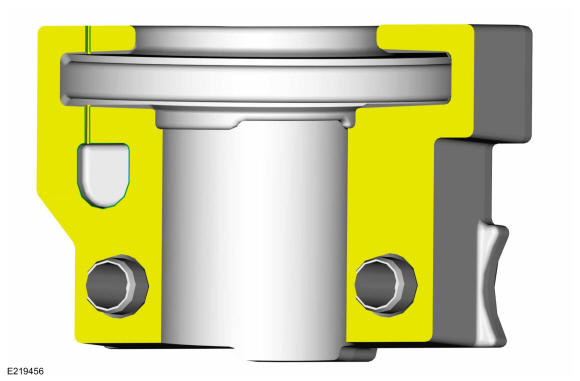

NOTE: The camshaft front thrust bearing cap contains an oil metering groove. Make sure the groove is free of foreign material.

Clean and inspect the RH camshaft bearing caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools to remove the camshaft sprocket bolt or damage may occur to the camshaft or camshaft sprocket.

NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed.

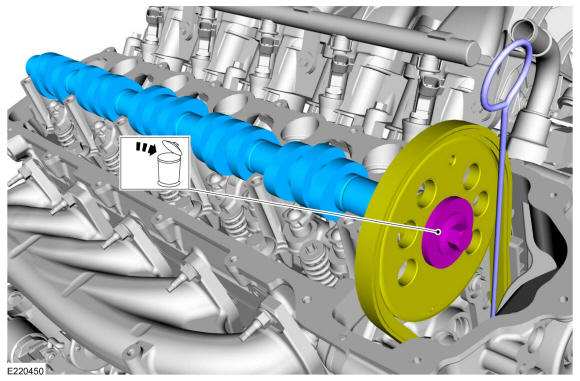

- Remove the bolt and withdraw the camshaft from the sprocket assembly leaving the sprocket assembly and timing chain in place.
- Discard the bolt, the washer and remove the camshaft.

Courtesy of FORD MOTOR COMPANY
