Camshaft LH: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The camshaft procedure must be followed exactly or damage to the valves and pistons will result.

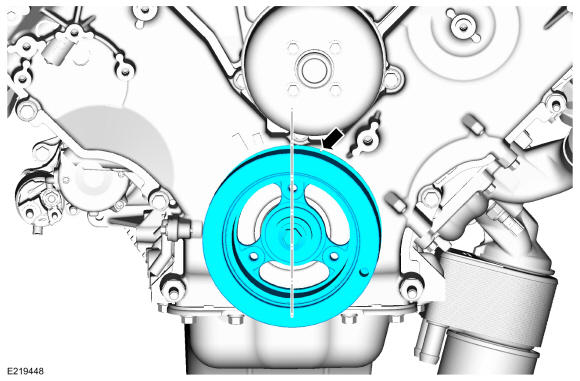

Position the crankshaft damper spoke at the 12 o'clock position and the timing mark indentation at the 1 o'clock position.

Courtesy of FORD MOTOR COMPANY
Remove the valve cover LH. Refer to: Valve Cover LH .
NOTE: The balance shaft bearing caps must be installed in their original locations or engine damage may occur. Record camshaft bearing cap locations.

Using the sequence shown, remove the bolts and then the balance shaft bearing caps.

Fig 1: Balance Shaft Loosening Sequence
Courtesy of FORD MOTOR COMPANY
Remove the balance shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools to loosen the sprocket bolt or damage to the camshaft or camshaft sprocket may occur.

Loosen and back off the LH camshaft sprocket bolt one full turn.

Courtesy of FORD MOTOR COMPANY
NOTE: If servicing both camshafts, do not rotate the crankshaft or engine damage may occur. Camshaft position has been established in Step 9.

NOTE: If the camshaft lobes are not exactly positioned as shown, the crankshaft keyway will require one full additional rotation to 12 o'clock. Do not rotate the crankshaft if servicing both camshafts.

The No. 6 cylinder camshaft exhaust lobe must be coming up on the exhaust stroke. Verify by noting the position of the 2 intake camshaft lobes and the exhaust lobe on the No. 6 cylinder.

Courtesy of FORD MOTOR COMPANY
Remove only the 4 camshaft roller followers shown in the illustration.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshaft roller followers must be installed in their original locations or engine damage may occur. Record camshaft roller follower locations.

NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed.

NOTE: It may be necessary to push the valve down while compressing the spring.

Using the special tool, remove only the 4 camshaft roller followers designated in the previous step. Use Special Service Tool: 303-1039 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft cannot be moved past the 6 o'clock position once set. Failure to follow this instruction may result in engine damage.

Rotate the crankshaft clockwise, as viewed from the front, positioning the crankshaft damper spoke at the 6 o'clock position and the timing mark indentation at the 7 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: Engine is not freewheeling. Camshaft procedure must be followed exactly or damage to valves and pistons will result.

NOTE: The Timing Chain Locking Tool must be installed square to the timing chain and the engine block or engine damage may occur.

NOTE: Front cover removed for clarity.

Install the special tool in the LH timing chain as shown. Use Special Service Tool: 303-1175 Locking Tool, Timing Chain.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed.

NOTE: The timing chain must be installed in its original position onto the camshaft sprocket using the scribed marks, or damage to valves and pistons will result.

Scribe a location mark on the timing chain and the camshaft sprocket assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the front thrust camshaft bearing cap straight upward from the bearing towers, or the bearing cap may be damaged from side loading.

NOTE: Timing drive removed from graphic for clarity.

Remove the bolts and the camshaft front bearing cap.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshaft bearing caps must be installed in their original locations. Record camshaft bearing cap locations. Failure to follow these instructions may result in engine damage.

NOTE: Timing drive removed from graphic for clarity.

Remove the remaining bolts in the sequence shown and the camshaft bearing caps.

Fig 2: LH Camshaft Loosening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: The camshaft front thrust bearing cap contains an oil metering groove. Make sure the groove is free of foreign material.

Clean and inspect the LH camshaft bearing caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools to remove the camshaft sprocket bolt or damage may occur to the camshaft or camshaft sprocket.

NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed.
- Remove the bolt and withdraw the camshaft from the sprocket assembly leaving the sprocket assembly and timing chain in place.
- Discard the bolt, the washer and remove the camshaft.

Courtesy of FORD MOTOR COMPANY
