Intake Manifold Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

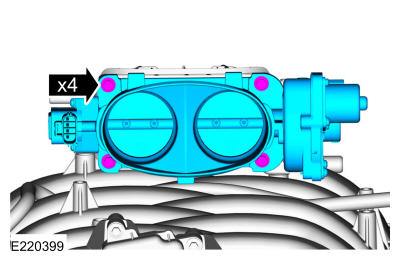

  1. Remove the throttle body bolts and the throttle body.
    GFD202299Courtesy of FORD MOTOR COMPANY

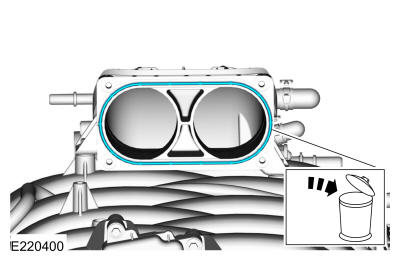

  2. Remove and discard the throttle body gasket.
    GFD202300Courtesy of FORD MOTOR COMPANY

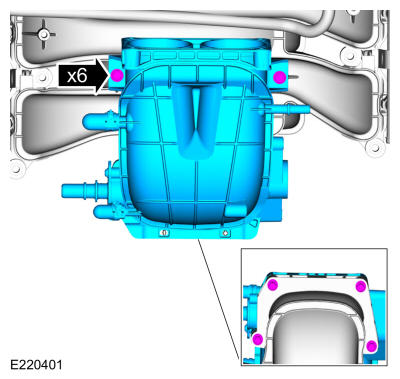

  3. Remove the throttle body spacer bolts and the throttle body spacer.
    GFD202301Courtesy of FORD MOTOR COMPANY

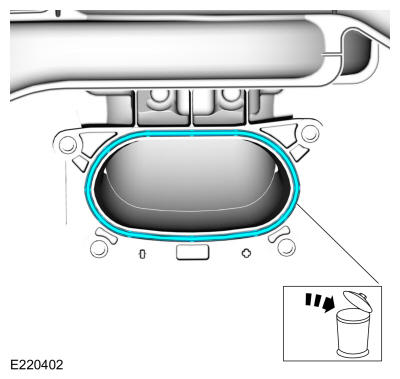

  4. Remove and discard the throttle body spacer gasket.
    GFD202302Courtesy of FORD MOTOR COMPANY

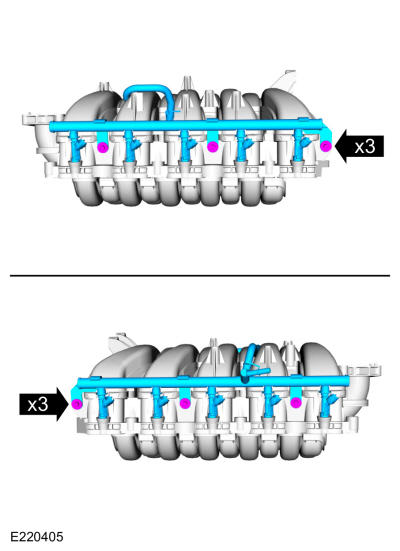

  5. NOTE: The fuel rail and fuel injectors are removed as an assembly.

    • Remove the fuel rail bolts.

    • Remove the fuel rail and fuel injector assembly.

    GFD202303Courtesy of FORD MOTOR COMPANY

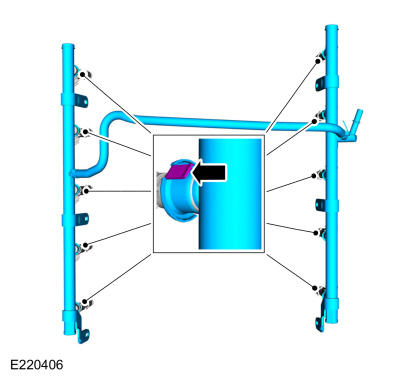

  6. Release the fuel injector-to-fuel rail clips, separate the fuel rail from the fuel injectors and then remove the fuel rail.
    GFD202304Courtesy of FORD MOTOR COMPANY
  7. Remove and discard all of the fuel injector O-ring seals.
GFD202305Courtesy of FORD MOTOR COMPANY
