Cylinder Head: Assembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

NOTE: RH shown, LH similar.

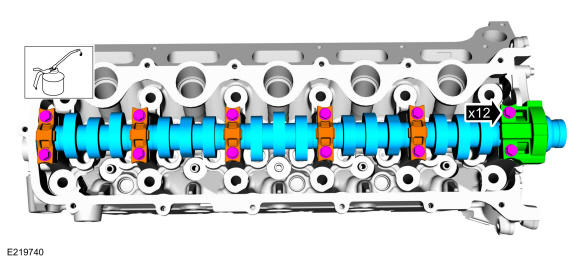

NOTE: Lubricate the camshaft, camshaft journals and camshaft bearing caps with clean engine oil.

NOTE: Do not tighten the bolts.
- Lubricate the camshaft with clean engine oil and install the camshaft.
- Lubricate the camshaft bearing caps with clean engine oil and install the front camshaft bearing cap and then the remaining bearing caps.
- Install the bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed.

NOTE: Lubricate the valve stem with clean engine oil prior to installation.

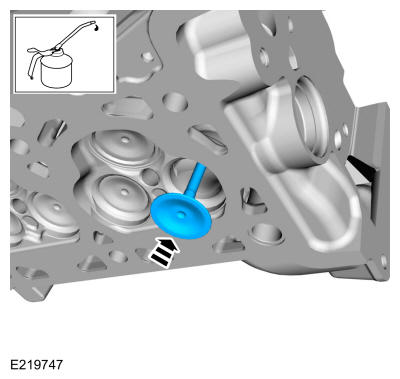

Lubricate with clean engine oil and install the valve in the cylinder head.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the valve seal assembly with clean engine oil prior to installation.

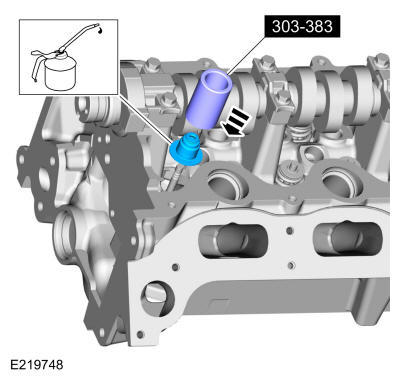

Lubricate with clean engine oil and using the special tool, install the valve stem seal. Use Special Service Tool: 303-383 (T91P-6571-A) Installer, Valve Stem Oil Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in their original locations or engine damage may occur.

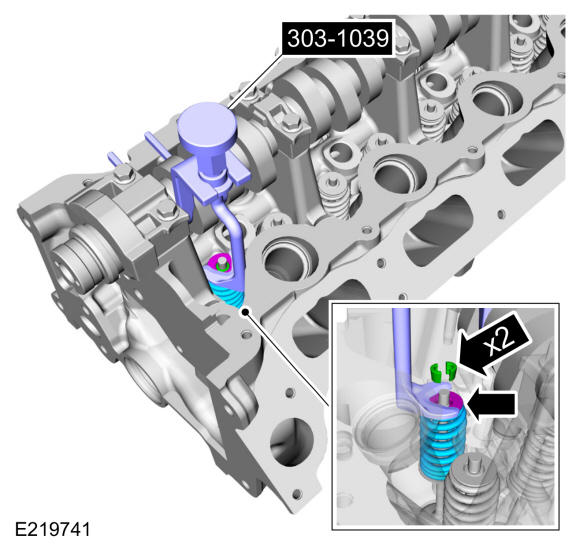

Using the special tool, install the valve spring, the valve spring retainer and the valve spring retainer keys. Use Special Service Tool: 303-1039 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY
Repeat the previous 3 steps for each valve.

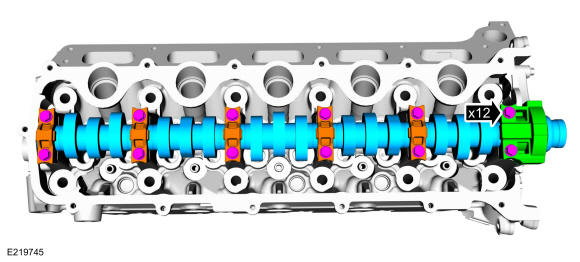

NOTE: Remove the front thrust camshaft bearing cap straight upward from the bearing towers, or the bearing cap may be damaged from side loading.
- Remove the bolts.
- Remove the front camshaft bearing cap and then the remaining bearing caps.
- Remove the camshaft.
Courtesy of FORD MOTOR COMPANY

LH cylinder head

NOTE: The cylinder head assembly service part does not come with the front oil cover, the bolts or the gasket. It will be necessary to install a new gasket and the original front oil cover and bolts onto the new cylinder head assembly.

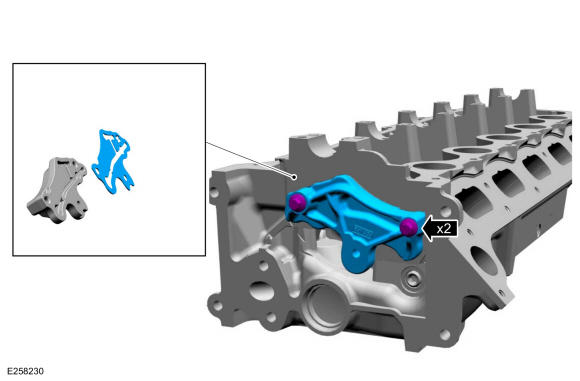

If necessary, install a new gasket, the front oil cover and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

RH cylinder head

NOTE: The cylinder head assembly service part does not come with the front oil cover, the bolts or the gasket. It will be necessary to install a new gasket and the original front oil cover and bolts onto the new cylinder head assembly.

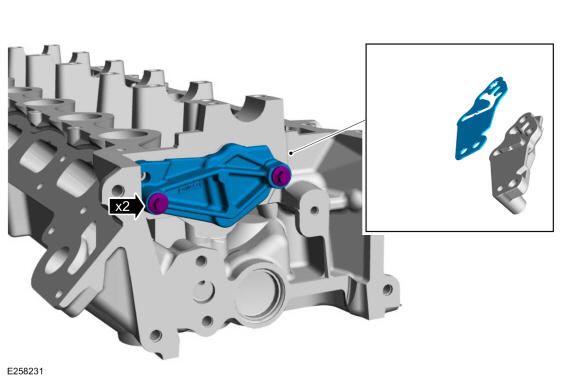

If necessary, install a new gasket, the front oil cover and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

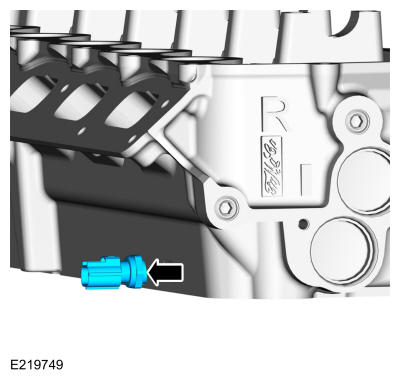

Install a new CHT sensor.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
