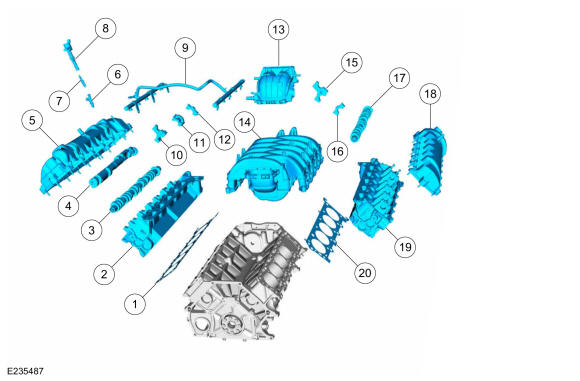

Exploded View Of Upper Engine
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6083 | LH cylinder head gasket |
| 2 | 6050 | LH cylinder head |
| 3 | 6C255 | LH camshaft |
| 4 | 6A306 | Balance shaft |
| 5 | 6K273 | LH valve cover |
| 6 | 9F593 | Fuel injector (10 required) |
| 7 | 12405 | Spark plug (10 required) |
| 8 | 12A366 | Ignition coil on plug (10 required) |
| 9 | 9F792 | Fuel rail |
| 10 | 6C272 | Camshaft and balance shaft bearing front (1 required) |
| 11 | 6B284 | Camshaft bearing cap (1 required) |
| 12 | 6C267 | Balance shaft bearing cap (3 required) |
| 13 | 9A589 | Throttle body |
| 14 | 9424 | Intake manifold |
| 15 | 6C266 | Camshaft bearing cap (1 required) |
| 16 | 6B280 | Camshaft and balance shaft bearing cap (5 required) |
| 17 | 6251 | RH camshaft |
| 18 | 6K271 | RH valve cover |
| 19 | 6049 | RH cylinder head |
