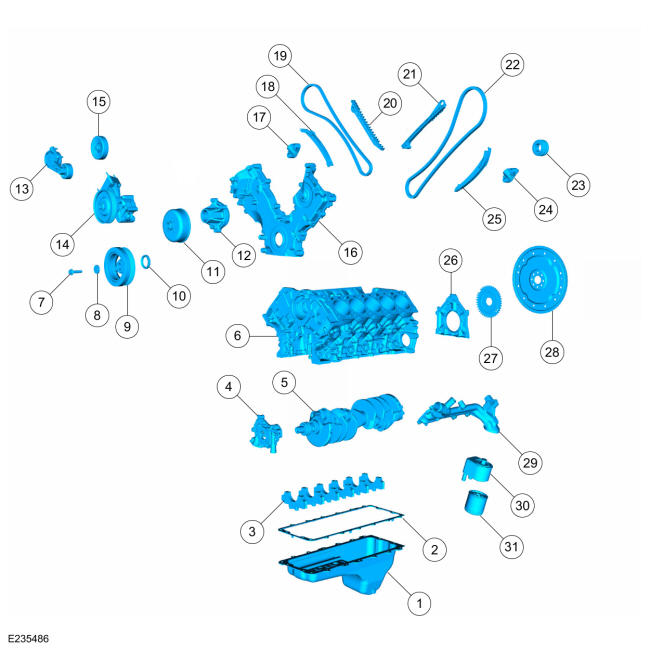

Exploded View Of Lower Engine
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6675 | Oil pan |
| 2 | 6710 | Oil pan gasket |
| 3 | 6325 | Crankshaft main bearing cap |
| 4 | 6621 | Oil pump |
| 5 | 6303 | Crankshaft |
| 6 | 6015 | Cylinder block |
| 7 | W701512 | Crankshaft pulley bolt |
| 8 | N806165 | Crankshaft pulley washer |
| 9 | 6316 | Crankshaft pulley |
| 10 | 6700 | Crankshaft front oil seal |
| 11 | 8509 | Coolant pump pulley |
| 12 | 8505 | Coolant pump |
| 13 | 6B209 | Tensioner pulley |
| 14 | 3A674 | Power steering pump assembly |
| 15 | 19A216 | Idler pulley |
| 16 | 6D080 | Engine front cover |
| 17 | 6M269 | RH primary timing chain tensioner |
| 18 | 6K255 | RH timing chain tensioner arm |
| 19 | 6268 | RH primary timing chain |
| 20 | 6M256 | RH timing chain guide |
| 21 | 6B274 | LH timing chain guide |
| 22 | 6268 | LH primary timing chain |
| 23 | 6306 | Crankshaft sprocket |
| 24 | 6L266 | LH primary timing chain tensioner |
| 25 | 6M274 | LH timing chain tensioner arm |
| 26 | 6K318 | Crankshaft rear seal retainer plate |
| 27 | 12A227 | Crankshaft sensor ring |
| 28 | 6375 | Flywheel |
| 29 | 6884 | Oil filter adapter |
| 30 | 6A642 | Oil cooler |
| 31 | 6714 | Oil filter |
