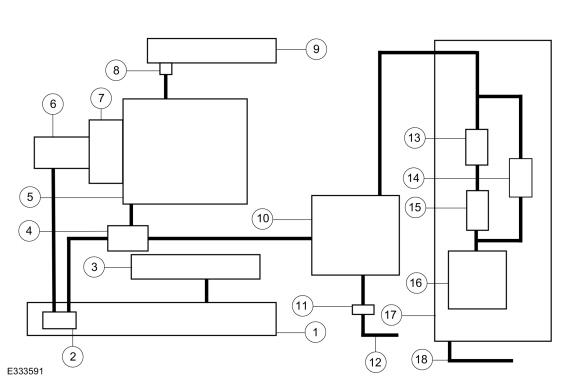

System Diagram
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | LH air cleaner outlet pipe |
| 2 | Vapor ejector |
| 3 | LH valve cover |
| 4 | EVAP canister purge valve |
| 5 | Upper intake manifold |
| 6 | CAC outlet tube |
| 7 | Throttle body |
| 8 | PCV valve |
| 9 | RH valve cover |
| 10 | EVAP canister |
| 11 | EVAP leak detection control module |
| 12 | Fresh air hose |
| 13 | Fuel vapour vent valve (FVVV) |
| 14 | Fule tank isolation valve (FTIV) |
| 15 | Fuel Tank Pressure (FTP) sensor and tube |
| 16 | Fuel pump and sender unit |
| 17 | Fuel tank |
| 18 | Fuel tank filler pipe |
