Exhaust Gas Recirculation (EGR) Cooler: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

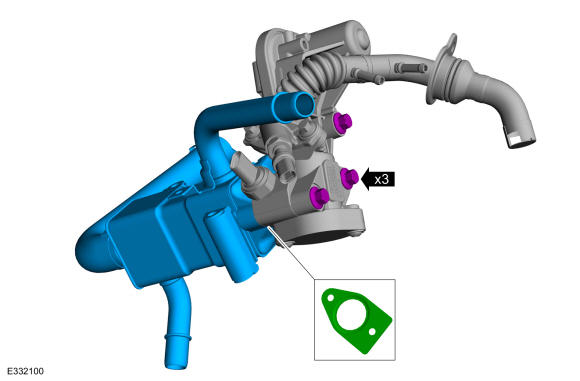

- Install the EGR valve gasket.
- Install the EGR cooler assembly.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: The new EGR outlet tube O-ring comes with lubricant, no lubricant needs to be applied.

Install the new o-ring.

Courtesy of FORD MOTOR COMPANY
NOTE: The new EGR to exhaust manifold connector comes with lubricant, no lubricant needs to be applied.

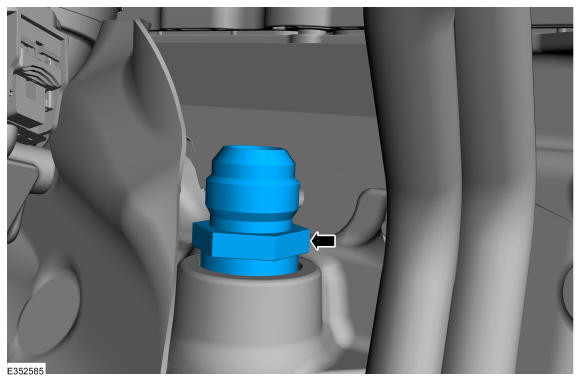

Install the new EGR to exhaust manifold connector.

Torque

: 125 lb.ft (170 Nm)

Courtesy of FORD MOTOR COMPANY

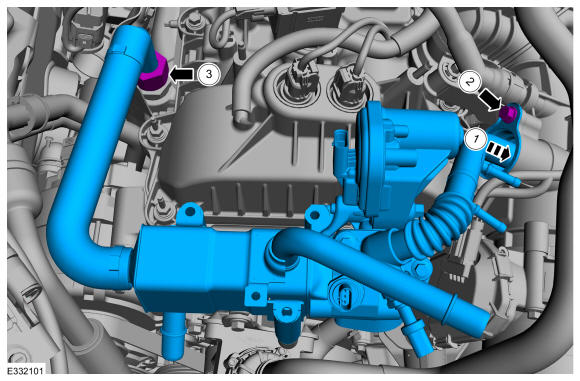

1. Install the EGR valve assembly.
2. Install the EGR valve outlet tube fastener and hand tighten at this stage.
3. Install the EGR valve inlet tube nut and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY
Install the EGR cooler fasteners and hand tighten at this stage.

Courtesy of FORD MOTOR COMPANY

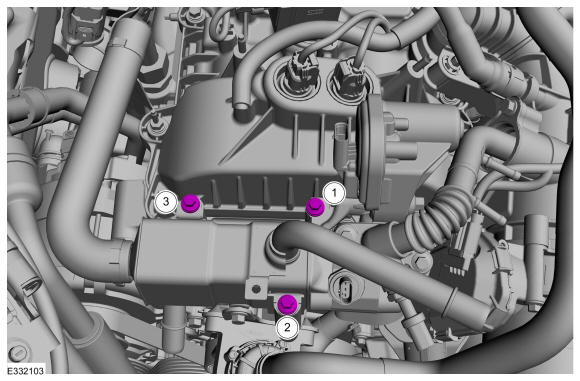

Tighten the EGR cooler fasteners as per the sequence.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

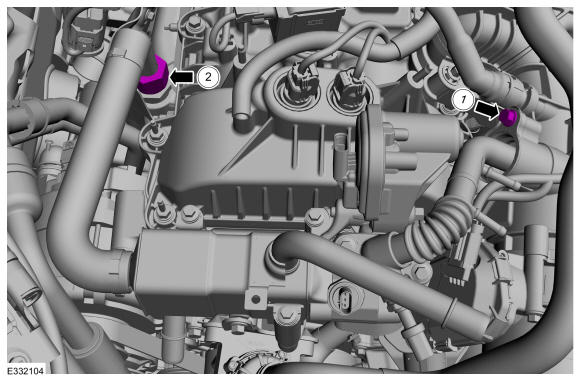

1. Tighten the EGR valve outlet tube fastener.
  Torque

  : 89 lb.in (10 Nm)
2. Tighten the EGR valve inlet tube fastener.
  Torque

  : 103 lb.ft (140 Nm)
Courtesy of FORD MOTOR COMPANY
Release the clip and pull back heat sleeve to visually inspect hot tube for any twisting.

Courtesy of FORD MOTOR COMPANY
Position back the heat sleeve and install the clip.

Courtesy of FORD MOTOR COMPANY
Connect the differential pressure sensor hoses.

Courtesy of FORD MOTOR COMPANY

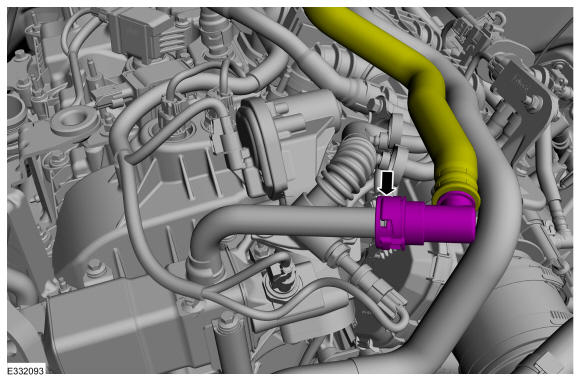

Connect the upper coolant hose to the EGR cooler assembly. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the lower coolant hose to the EGR cooler assembly. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the electrical connectors and wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

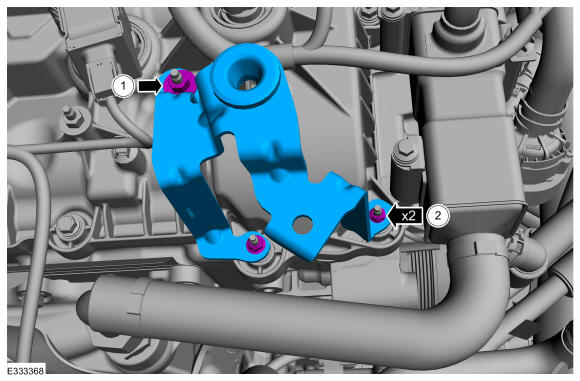

Install the CAC tube bracket and retainers.
Torque

: 1: 71 lb.in (8 Nm)

2: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH side CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Install the RH side air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Refill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

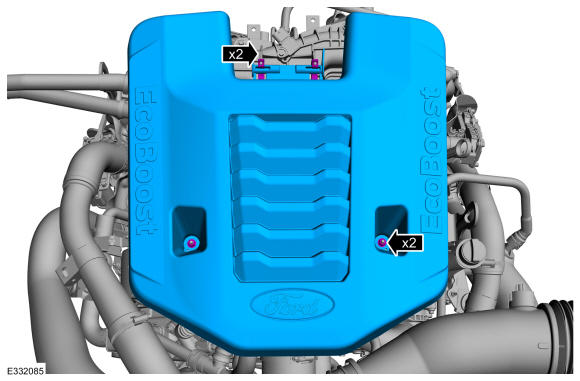

Slide the engine appearance cover into the retaining bracket and install the retainers.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
