Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

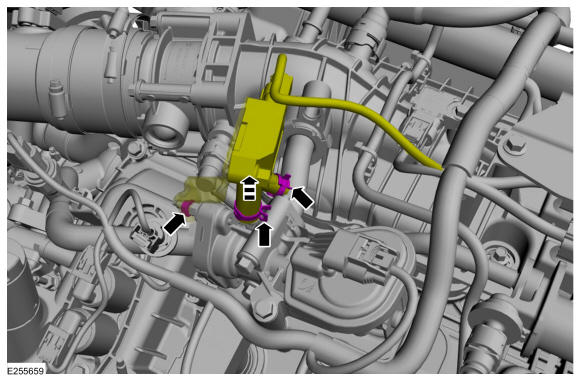

- Remove the nut.
  Torque

  : 53 lb.in (6 Nm)
- Loosen the clamps and position aside the differential pressure feedback EGR sensor.
Courtesy of FORD MOTOR COMPANY

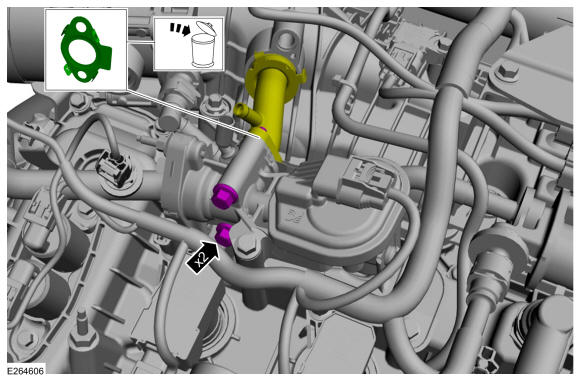

- Remove the EGR valve to EGR cold tube bolts.
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
- Disconnect the EGR valve electrical connector and remove the bolt.
- Remove the screw.
Courtesy of FORD MOTOR COMPANY

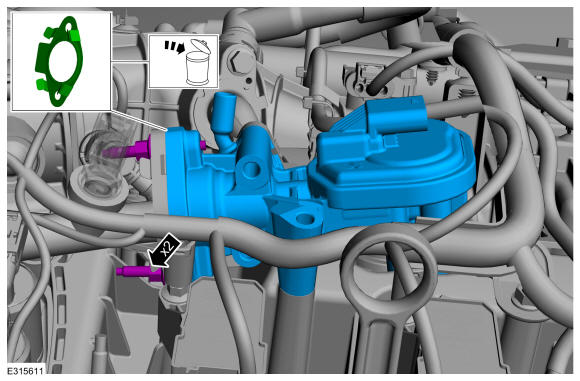

- Remove the studs, remove and discard the gasket.
- Remove the EGR valve.

Courtesy of FORD MOTOR COMPANY
