Exhaust Gas Recirculation (EGR) Valve: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

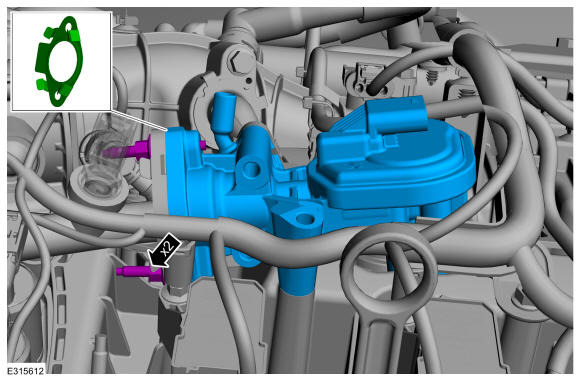

- Install the EGR valve.
- Install the studs and new gasket.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

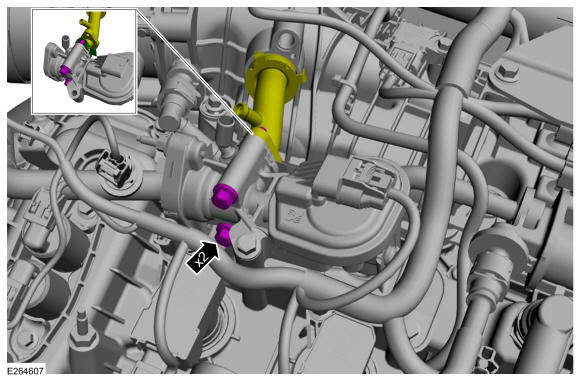

- Install the screw.

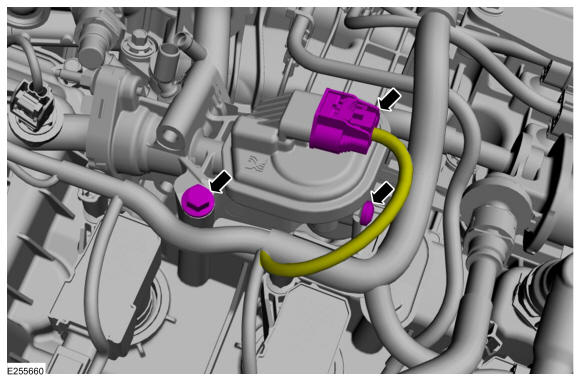

- Connect the EGR valve electrical connector and install the bolt.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Install the new gasket.
- Install the EGR valve to EGR cold tube bolts.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
