Exhaust Gas Recirculation (EGR) Temperature Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

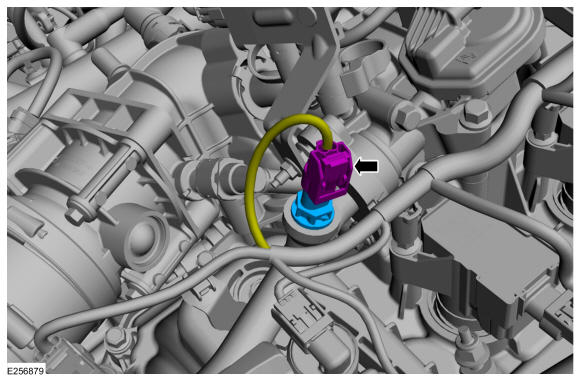

- Disconnect the electrical connector and position aside the wiring harness.
Courtesy of FORD MOTOR COMPANY

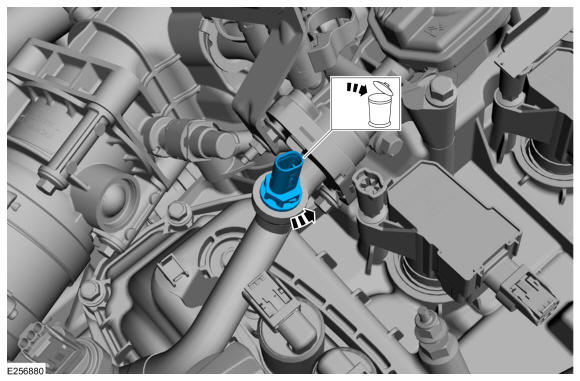

- Remove the EGR temperature sensor.
  Torque

  : 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY
