Exhaust Gas Recirculation (EGR) Cooler: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
    1. Remove the EGR cooler mounting bolts.
    2. Remove the EGR cooler tube nuts and studs, position aside the EGR cooler tube and discard the gasket.
    3. Disconnect the quick release coupling and position aside the EGR cooler outlet hose.

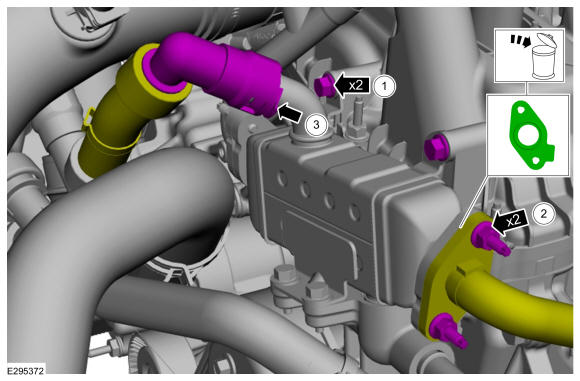

    GFD557737Courtesy of FORD MOTOR COMPANY
    1. Remove the EGR cooler tube nuts and studs.
    2. Remove the EGR cooler mounting bolts.

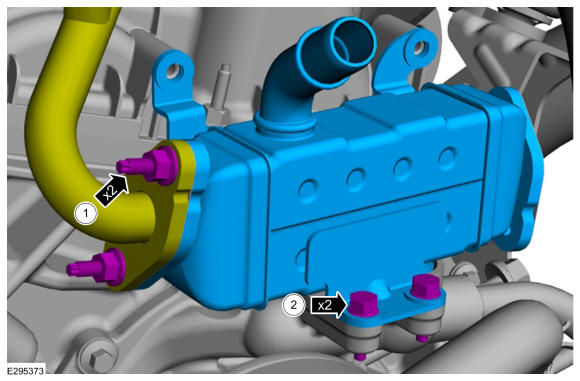

    GFD557738Courtesy of FORD MOTOR COMPANY
  5. Remove and discard the EGR cooler O-rings and gasket.
GFD557739Courtesy of FORD MOTOR COMPANY
