Exhaust Gas Recirculation (EGR) Cooler to EGR Valve Tube: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

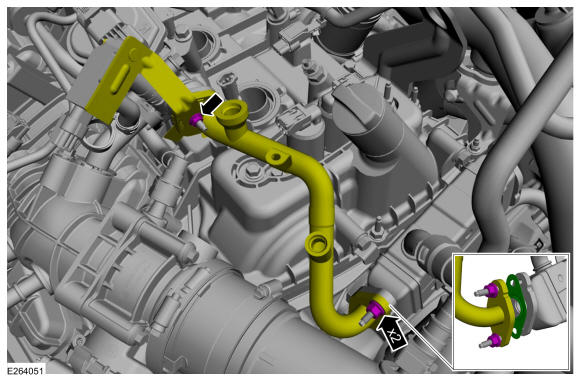

- Install the fasteners.
  Torque

  : 89 lb.in (10 Nm)
- Install the new gasket and EGR cooler to EGR valve tube.
Courtesy of FORD MOTOR COMPANY
- Install the differential pressure feedback EGR sensor bracket nut.
  Torque

  : 53 lb.in (6 Nm)

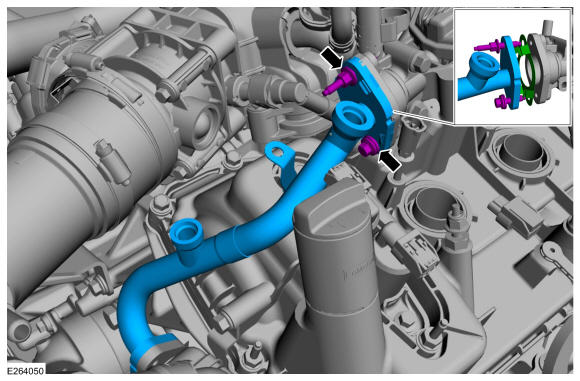

- Install the new gasket and EGR cooler to EGR valve tube.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the EGR temperature sensor. Refer to: Exhaust Gas Recirculation (EGR) Temperature Sensor .
Install the exhaust pressure sensor. Refer to: Exhaust Pressure Sensor .
