Exhaust Gas Recirculation (EGR) Cooler Inlet Tube: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

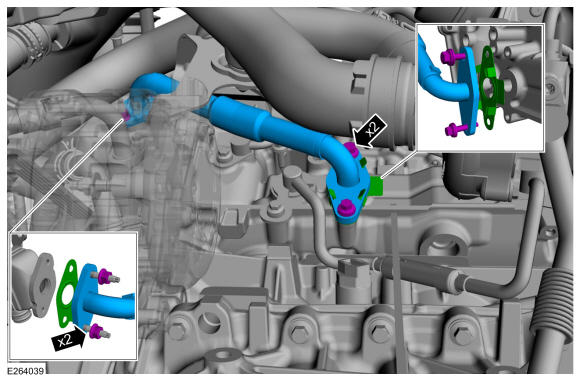

- Install the new gaskets.
- Install the EGR cooler inlet tube and tighten the fasteners.
  Torque

  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
- Install the skid plates and tighten the bolts.
  Torque

  : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
