Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-

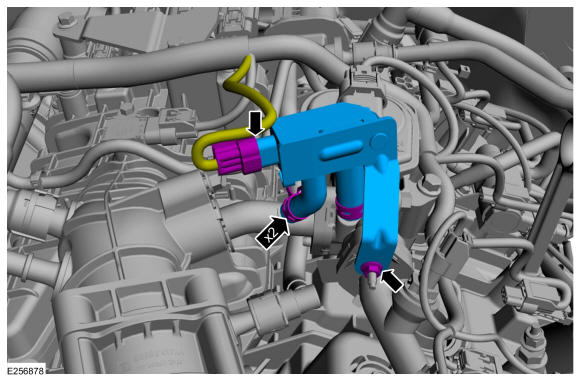

- Disconnect the electrical connector and position aside the wiring harness.
- Remove the nut and the differential pressure feedback EGR sensor.
Torque
: 53 lb.in (6 Nm)
 Courtesy of FORD MOTOR COMPANY
|
