Engine Emission Control - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

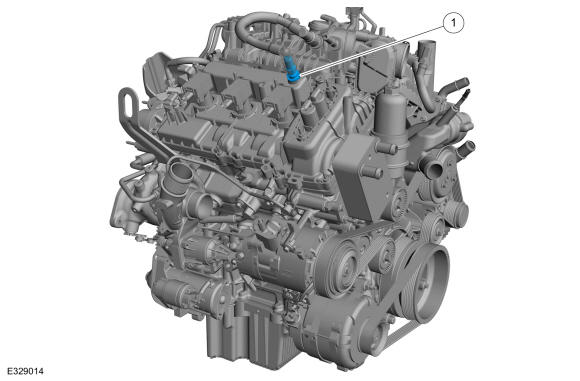

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCV valve |

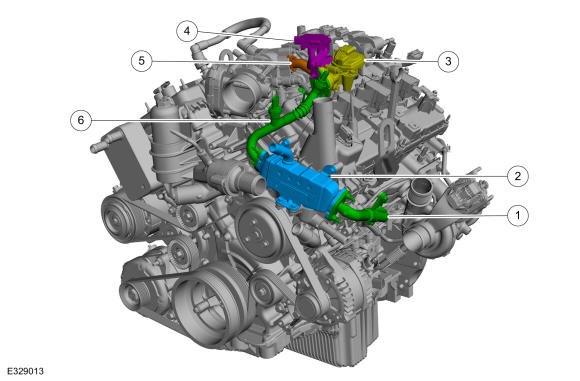

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
EGR cooler inlet tube |
| 2 |
EGR cooler |
| 3 |
EGR valve |
| 4 |
Differential pressure feedback EGR sensor. |
| 5 |
EGR outlet tube |
| 6 |
EGR cooler to EGR valve tube |
