Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

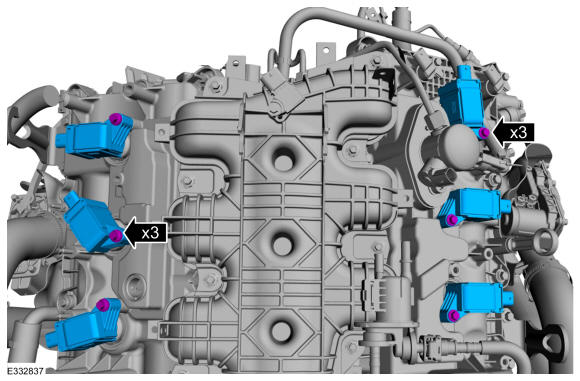

1. Install the ignition coil-on-plugs.
2. Install and tighten the ignition coil-on-plug fasteners.
  Torque

  :Stage 1: 62 lb.in (7 Nm)

  Stage 2: 50°
Courtesy of FORD MOTOR COMPANY

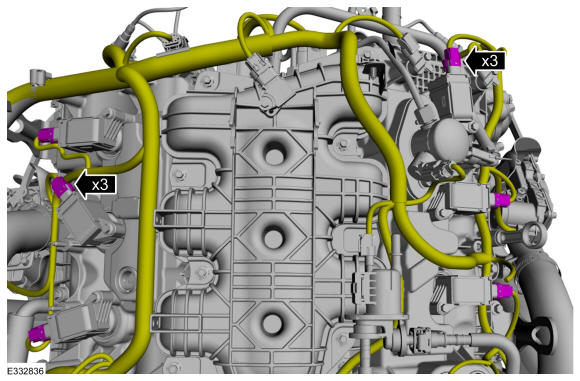

Connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY

Left side

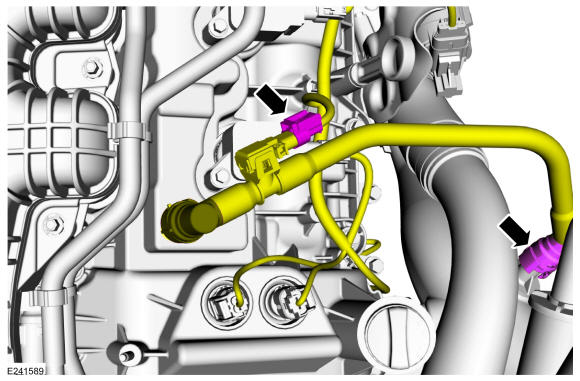

Connect the crankcase ventilation tube connector to the air intake pipe then connect the electrical connector. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

Both sides

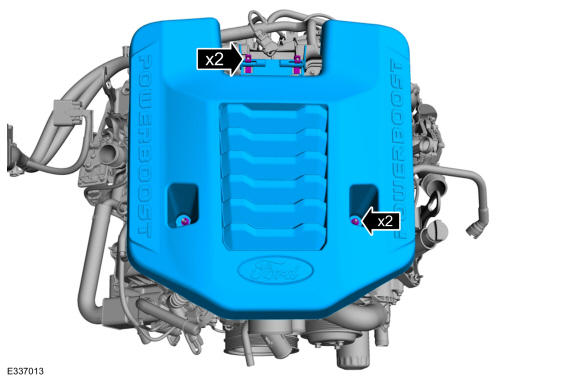

Install the engine appearance cover into the rear fasteners, then install and tighten the engine appearance cover fasteners.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
