Passive Anti-Theft System (PATS) Rear Antenna: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Regular Cab . Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .

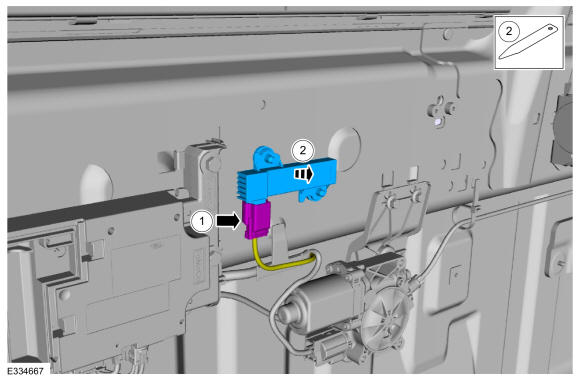

  2. Remove the PATS rear antenna.

    1. Disconnect the PATS rear antenna electrical connector.
    2. Release the tabs and remove the PATS rear antenna.

      Use the General Equipment: Interior Trim Remover

GFD561137Courtesy of FORD MOTOR COMPANY
