Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Console Shift: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Seats removed for clarity.

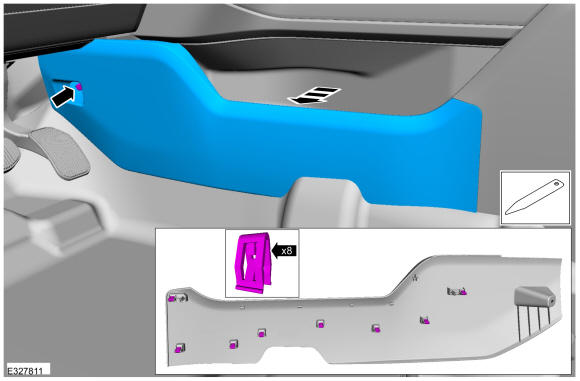

On LH side. Remove the screw, release the clips and remove the floor console lower LH trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

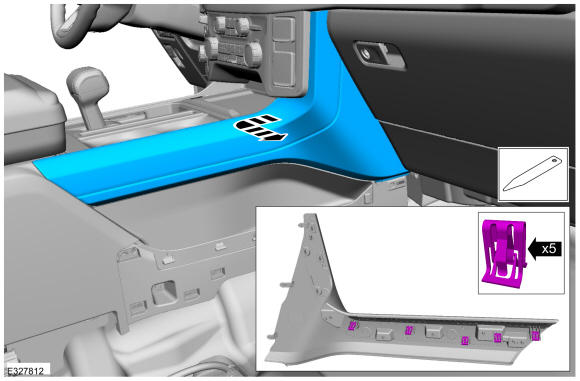

On LH side. Release the clips and remove the floor console upper trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

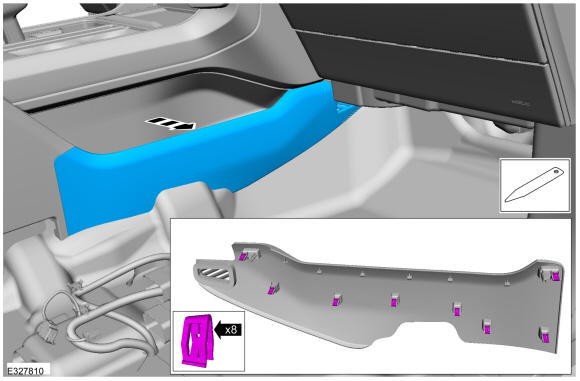

On RH side. Release the clips and remove the floor console lower RH trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

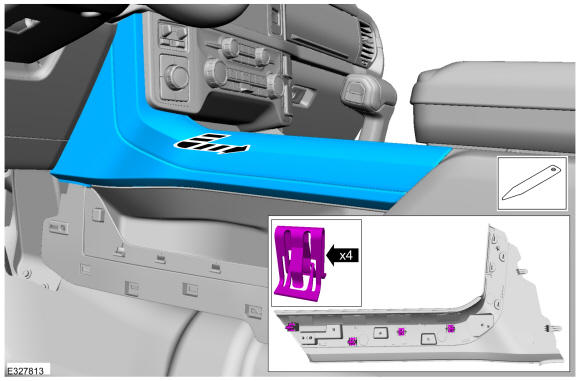

On RH side. Release the clips and remove the floor console upper trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

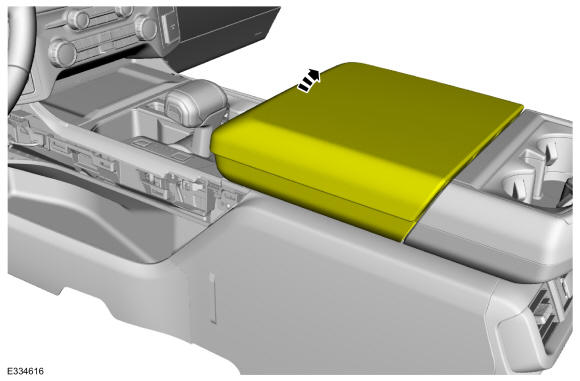

Open the floor console lid.

Courtesy of FORD MOTOR COMPANY

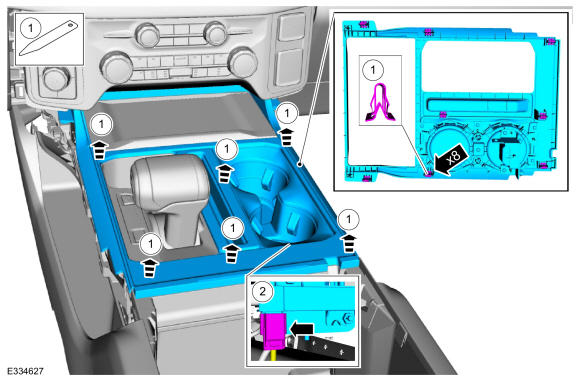

Remove the floor console upper bezel.
1. Release the clips.
  Use the General Equipment: Interior Trim Remover
2. Disconnect the PATS center antenna electrical connector.
Courtesy of FORD MOTOR COMPANY

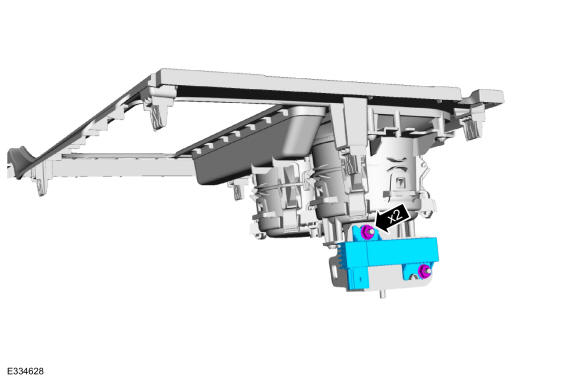

Remove the retainers and the PATS center antenna.
