Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Column Shift: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

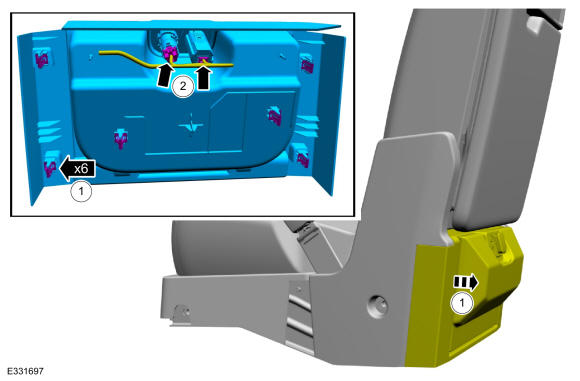

Remove the front center seat rear cup holder assembly.
1. Release the retainer and pull the front center seat rear cup holder assembly out.
2. Disconnect the auxiliary power point and the USB electrical connectors.
Courtesy of FORD MOTOR COMPANY

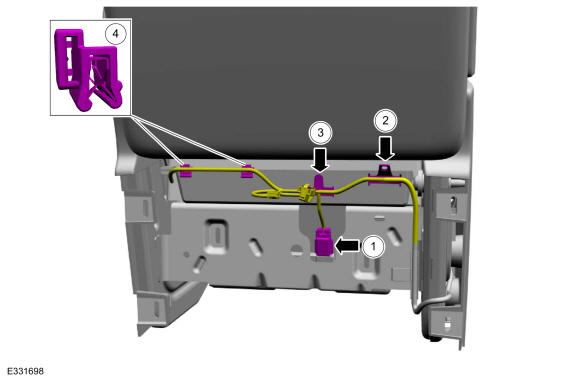

1. Disconnect the PATS center antenna electrical connector.
2. Detach the front center seat wiring harness retainer.
3. Detach the front center seat wiring harness retainer.
4. Detach the front center seat wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

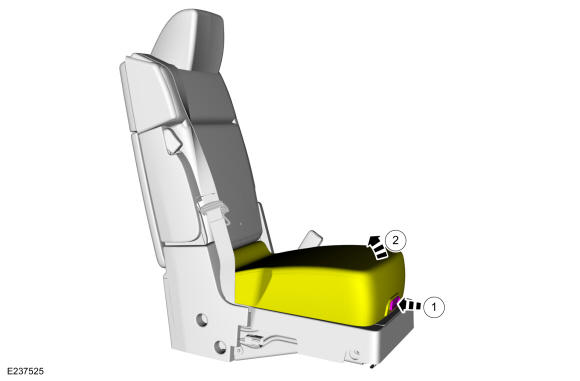

Lift the front center seat cushion upward.
1. Release the front center seat cushion latch.
2. Lift the front center seat cushion upward.
Courtesy of FORD MOTOR COMPANY

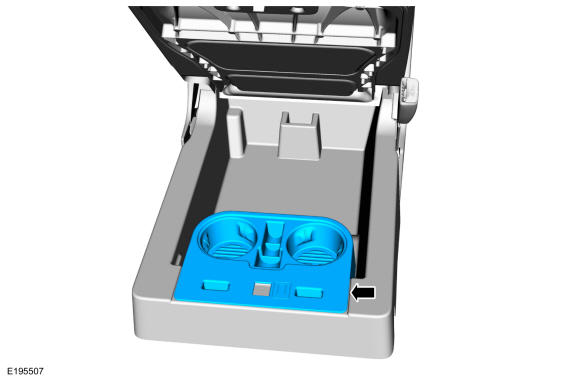

Remove the front center seat cup holder.

Courtesy of FORD MOTOR COMPANY

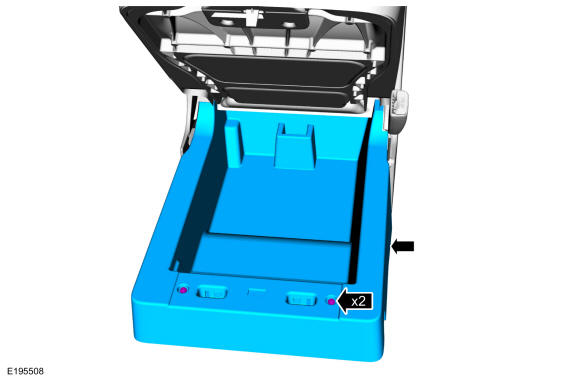

Remove the screws and the front center seat storage tray.

Courtesy of FORD MOTOR COMPANY

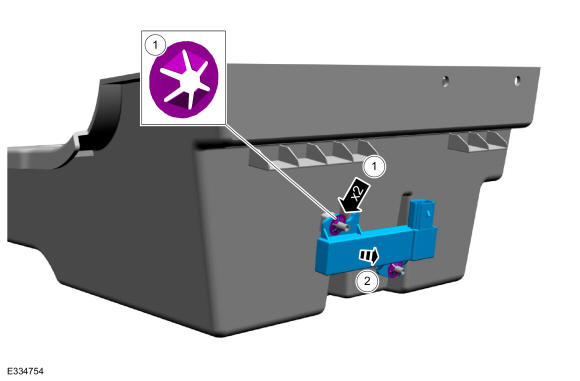

Remove the PATS center antenna.
1. Remove PATS center antenna retainers.
2. Remove the PATS center antenna.

Courtesy of FORD MOTOR COMPANY
