Timing Chain Tensioner: Installation

LH timing chain tensioner

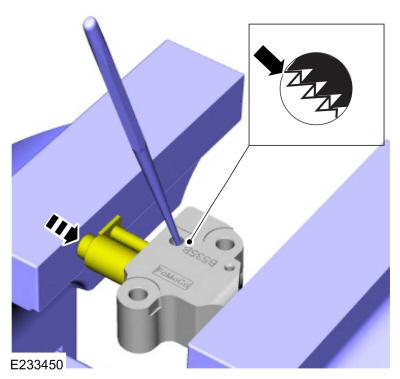

1. If not already pinned, using a small pick, carefully push the LH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

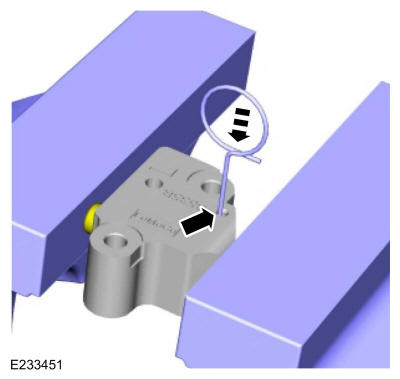

2. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
   • Remove the LH tensioner from the vise.

   Courtesy of FORD MOTOR COMPANY

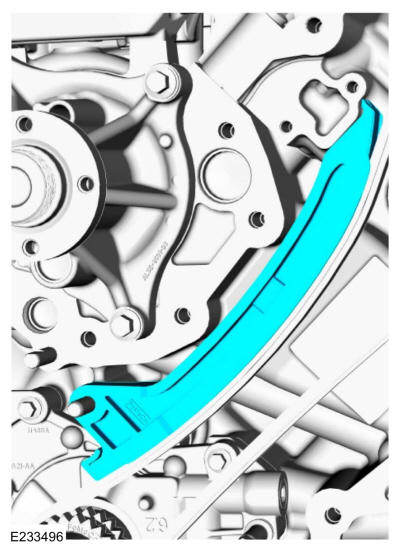

3. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

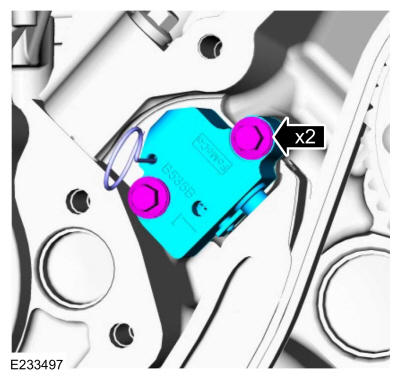

4. Install the LH primary timing chain tensioner and the bolts.

   Torque:

   Stage 1: 89 lb.in (10 Nm)

   Stage 2: 45 °

   Courtesy of FORD MOTOR COMPANY

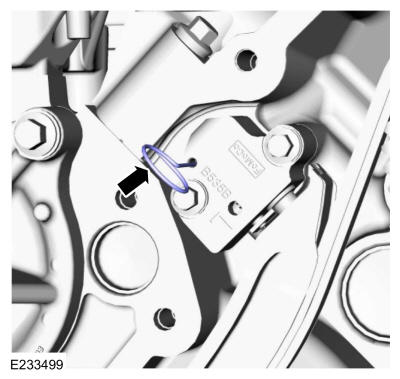

5. Remove the retaining clip from the LH timing chain tensioner.

   Courtesy of FORD MOTOR COMPANY

   RH timing chain tensioner

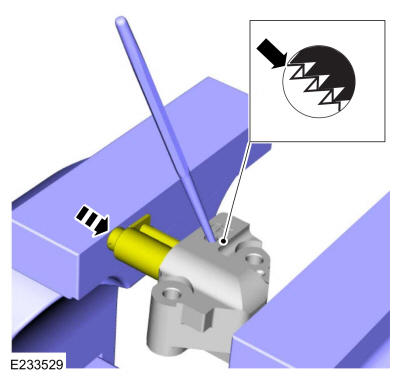

6. Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

7. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
   • Remove the RH tensioner from the vise.

   Courtesy of FORD MOTOR COMPANY

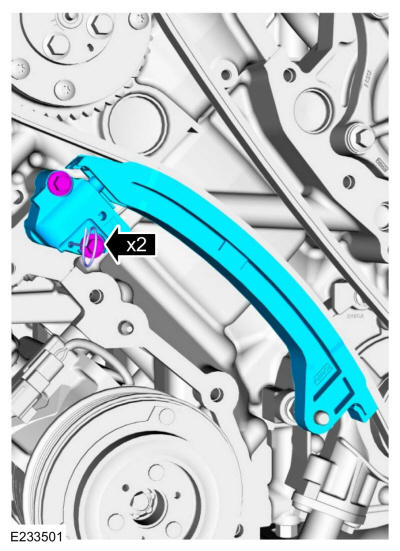

8. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.

   Torque:

   Stage 1: 89 lb.in (10 Nm)

   Stage 2: 45 °

   Courtesy of FORD MOTOR COMPANY

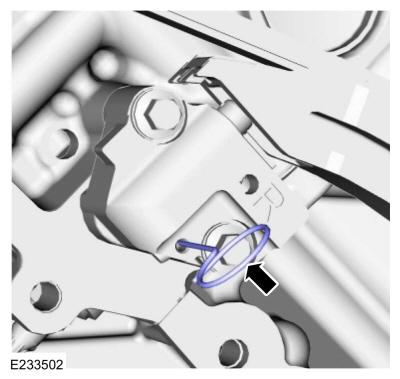

9. Remove the retaining clip from the RH timing chain tensioner.

   Courtesy of FORD MOTOR COMPANY

   RH and LH timing chain tensioners

10. Install the engine front cover. Refer to: Engine Front Cover .
