Oil Pump: Installation
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

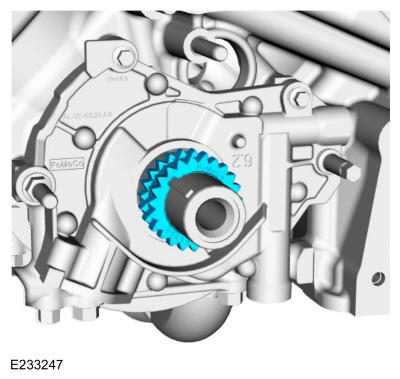

- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

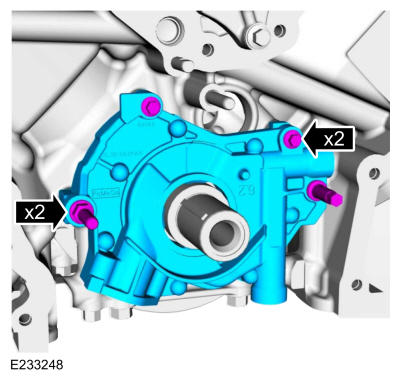

- Install the oil pump and the upper bolts, lower stud bolts.
Torque:
Stage 1: Tighten all fasteners to: 18 lb.in (2 Nm)
Stage 2: Tighten the upper bolts to: 89 lb.in (10 Nm)
Stage 3: Tighten the lower stud bolts to: 177 lb.in (20 Nm)
Stage 4: Tighten the upper bolts an additional: 45 °
Stage 5: Tighten the lower stud bolts an additional: 60 °
- Install the crankshaft sprocket.
- Lubricate with clean engine oil and install the oil pump screen and pickup tube O-ring seal.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
-

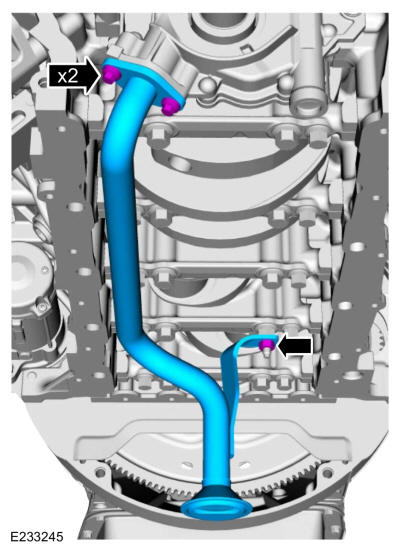

- Install the oil pump screen and pickup tube and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the oil pump screen and pickup tube nut.
Torque: 18 lb.ft (24 Nm)
- Install the oil pump screen and pickup tube and the bolts.

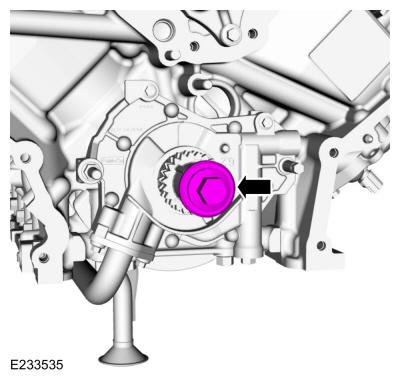

- Install the crankshaft bolt.
- Install the following items:
- Install the oil pan. Refer to: Oil Pan .
- Install the RH and LH timing chains. Refer to: Timing Chain .
