Oil Pan: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the following items:

    1. Remove the intake manifold. Refer to: Intake Manifold .
    2. Remove the cooling fan shroud. Refer to: Cooling Fan Shroud .

  2. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

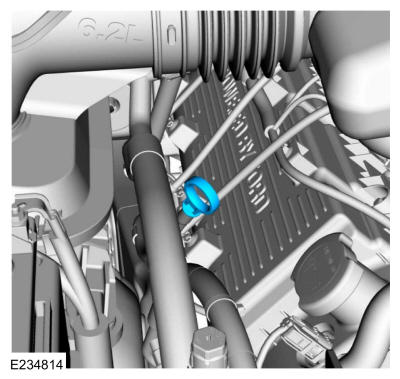

  3. Remove the oil level indicator.
    GFD201405Courtesy of FORD MOTOR COMPANY

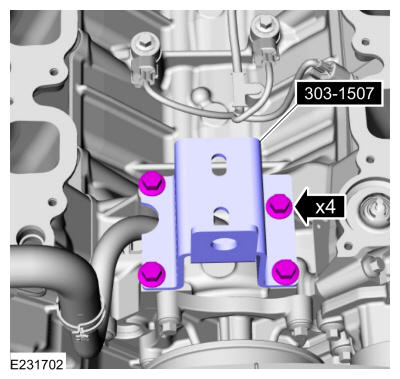

  4. Install Special Service Tool: 303-1507 Brackets, Support.
    GFD201406Courtesy of FORD MOTOR COMPANY

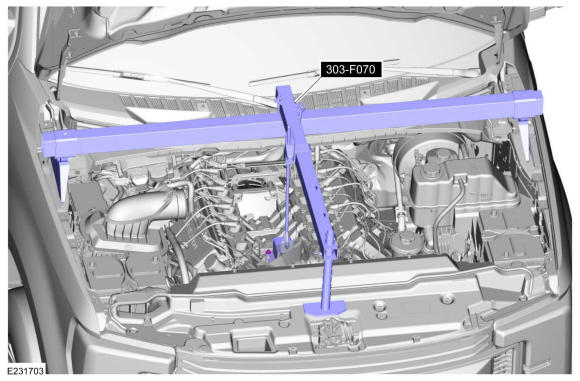

  5. Install Special Service Tool: 303-F070 Support Bar, Engine.
    GFD201407Courtesy of FORD MOTOR COMPANY

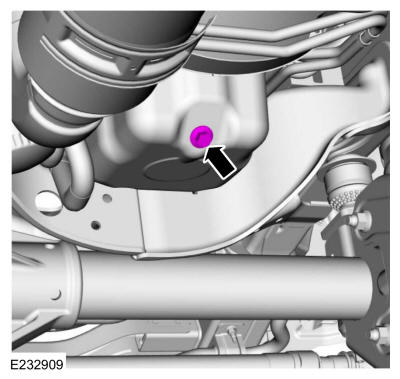

    • Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the drain plug.

      Torque: 17 lb.ft (23 Nm)

    GFD201408Courtesy of FORD MOTOR COMPANY

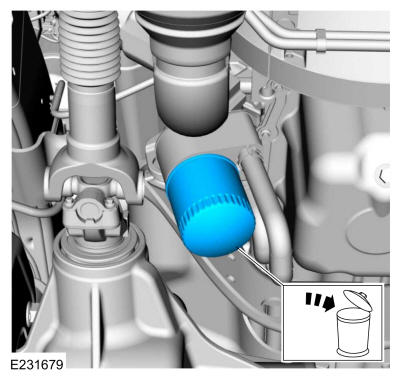

  7. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD201409Courtesy of FORD MOTOR COMPANY

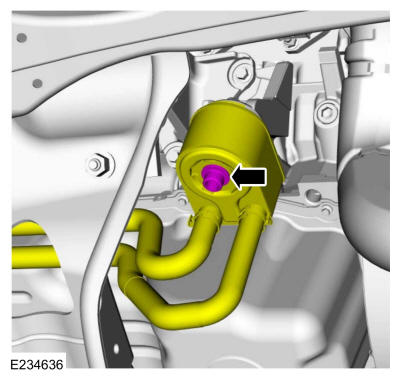

  8. Remove the retainer and position the engine oil cooler aside.
    GFD201410Courtesy of FORD MOTOR COMPANY

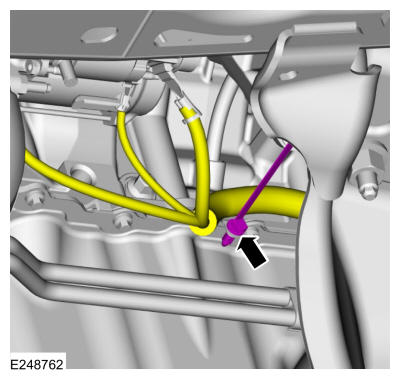

  9. Detach the starter motor wiring harness pin-type retainer from the oil pan.
    GFD201411Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic transmission

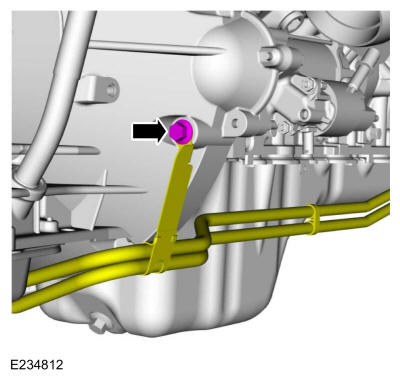

  10. Remove the bolt and position the transmission oil cooler tubes aside.
    GFD201412Courtesy of FORD MOTOR COMPANY

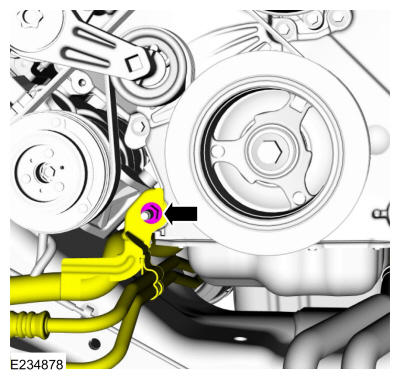

    • Remove the nut.

    • If equipped with automatic transmission, remove the transmission cooler lines bracket.

    • Remove the starter motor wiring harness bracket.

    GFD201413Courtesy of FORD MOTOR COMPANY

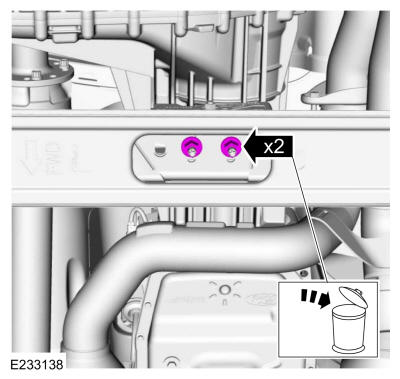

  12. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage. New transmission support insulator nuts will be installed during engine installation.
    NOTE: The transmission support insulator studs may come out of the insulator while removing the nuts.

    Remove and discard the transmission support insulator-to-crossmember nuts.

    GFD201414Courtesy of FORD MOTOR COMPANY

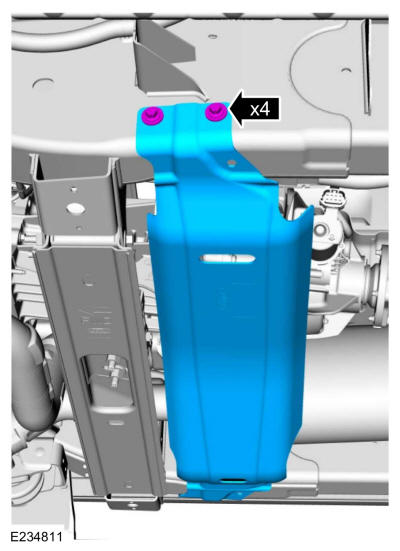

  13. If equipped, remove the bolts and the skidplate.
    GFD201415Courtesy of FORD MOTOR COMPANY
  14. Remove the RH HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

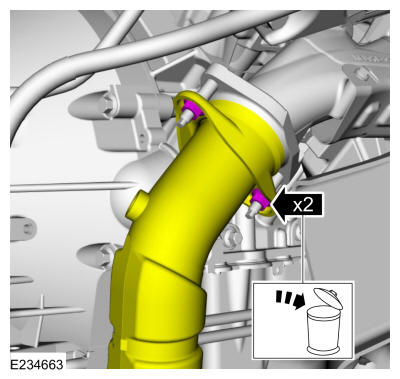

  15. Remove the RH catalytic converter pipe-to-manifold nuts and discard.
    GFD201416Courtesy of FORD MOTOR COMPANY

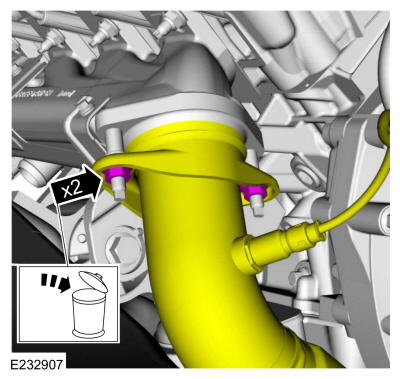

  16. Remove the LH catalytic converter pipe-to-manifold nuts and discard.
    GFD201417Courtesy of FORD MOTOR COMPANY

    All vehicles

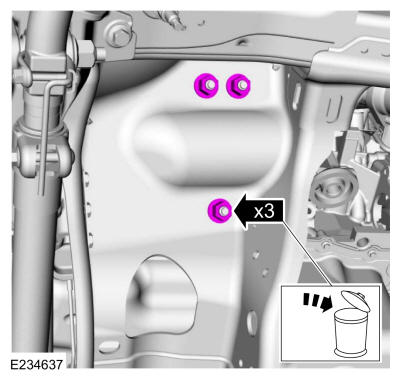

  17. NOTE: Failure to replace the engine mount nuts may result in engine mount damage.
    NOTE: Only use hand tools when loosening the engine mount nuts or damage to the engine mount may occur.

    Remove and discard the LH engine support insulator bracket nuts.

    GFD201418Courtesy of FORD MOTOR COMPANY

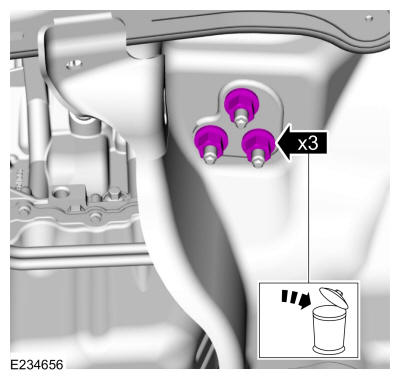

  18. NOTE: Failure to replace the engine mount nuts may result in engine mount damage.
    NOTE: Only use hand tools when loosening the engine mount nuts or damage to the engine mount may occur.

    Remove and discard the RH engine support insulator bracket nuts.

    GFD201419Courtesy of FORD MOTOR COMPANY

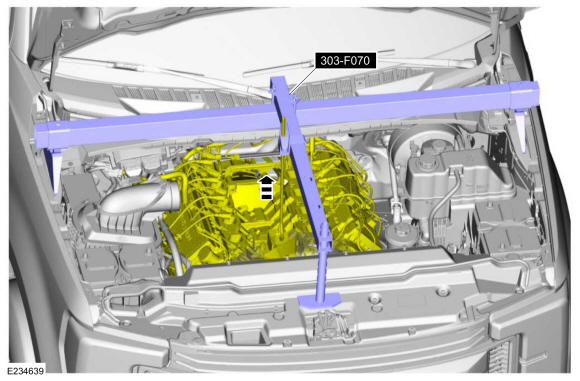

  19. Using the engine support bar, raise the engine. Install Special Service Tool: 303-F070 Support Bar, Engine.
    GFD201420Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic transmission

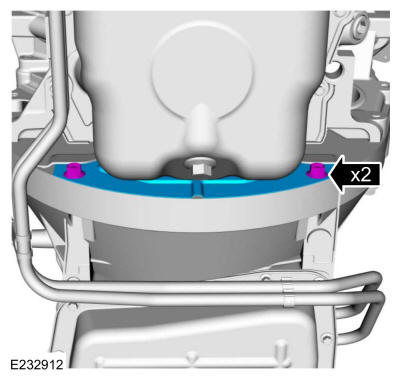

  20. Remove the bolts and the transmission inspection plate.
    GFD201421Courtesy of FORD MOTOR COMPANY

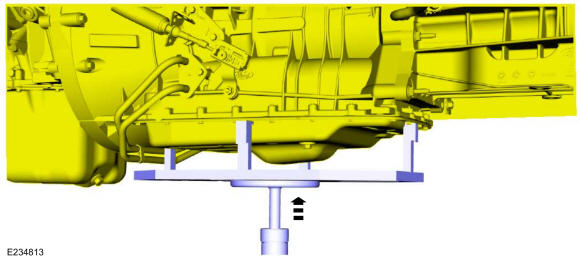

  21. NOTE: Support the transmission on the pan rails only or internal transmission damage can occur.

    Install a transmission jack and raise the transmission. Use the General Equipment: Transmission Jack

    GFD201422Courtesy of FORD MOTOR COMPANY

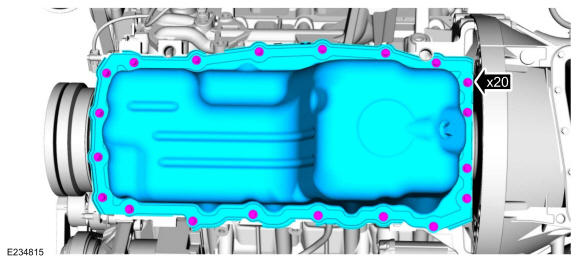

  22. Remove the bolts and the oil pan.
    GFD201423Courtesy of FORD MOTOR COMPANY

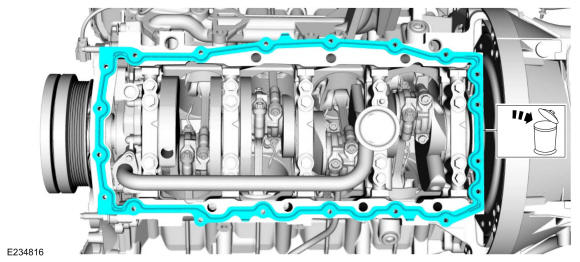

  23. Remove and discard the oil pan gasket.
    GFD201424Courtesy of FORD MOTOR COMPANY

    Vehicles with manual transmission

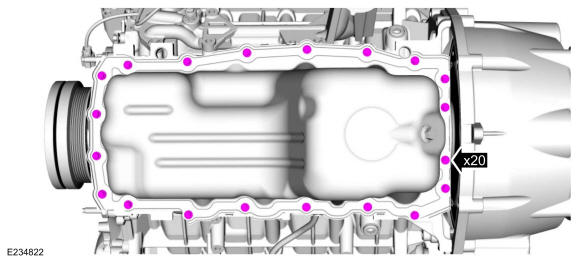

  24. Remove the oil pan bolts.
    GFD201425Courtesy of FORD MOTOR COMPANY

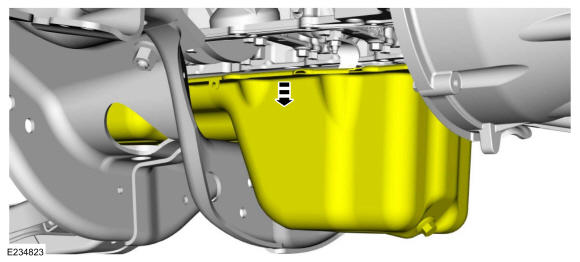

  25. Lower the oil pan onto the crossmember.
    GFD201426Courtesy of FORD MOTOR COMPANY

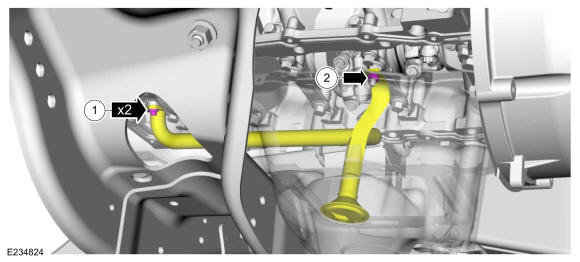

    1. Remove the oil pump screen and pickup tube bolts.
    2. Remove the nut and position the oil pump screen and pickup tube into the oil pan.
    GFD201427Courtesy of FORD MOTOR COMPANY

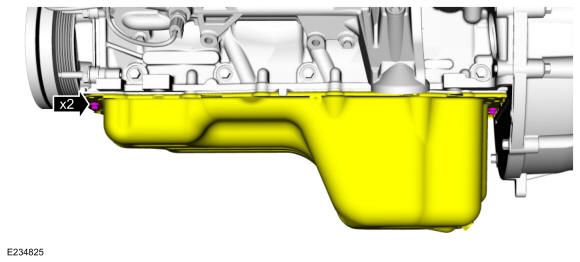

  27. Position the oil pan onto the engine and install one bolt at the front and one bolt at the rear of the oil pan to hold it in position.
    GFD201428Courtesy of FORD MOTOR COMPANY
  28. Using the engine support bar, align the engine support insulator studs and lower the engine. Install Special Service Tool: 303-F070 Support Bar, Engine.
    GFD201429Courtesy of FORD MOTOR COMPANY
  29. Remove the flywheel. Refer to: Flywheel .

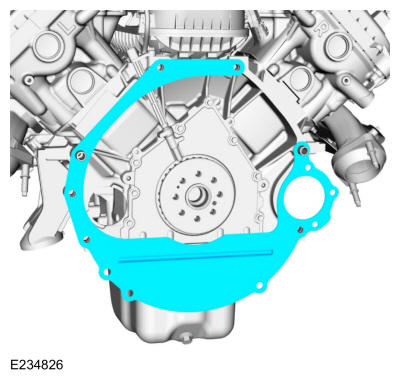

  30. Remove the engine-to-transmission spacer plate.
    GFD201430Courtesy of FORD MOTOR COMPANY

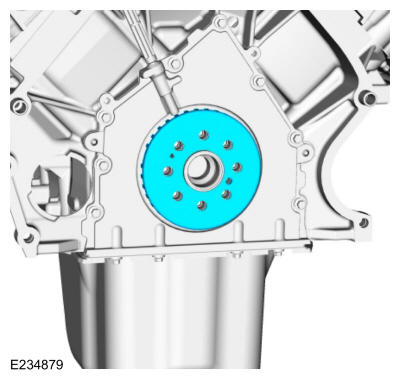

  31. Remove the crankshaft ignition pulse ring.
    GFD201431Courtesy of FORD MOTOR COMPANY

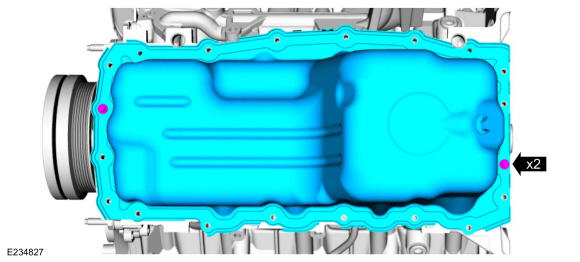

  32. Remove the bolts and the oil pan.
    GFD201432Courtesy of FORD MOTOR COMPANY

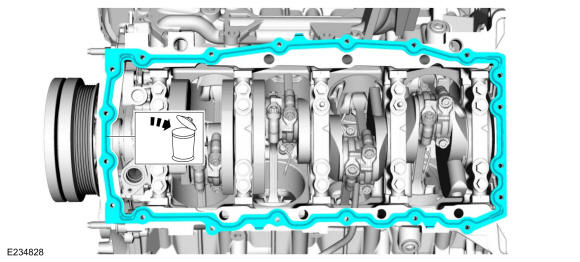

  33. Remove and discard the oil pan gasket.
    GFD201433Courtesy of FORD MOTOR COMPANY

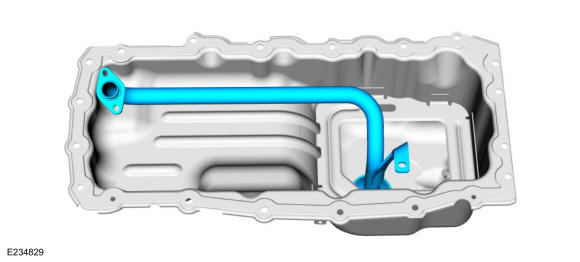

  34. Remove the oil pump screen and pickup tube from the oil pan.
    GFD201434Courtesy of FORD MOTOR COMPANY
  35. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD201435Courtesy of FORD MOTOR COMPANY

    All vehicles

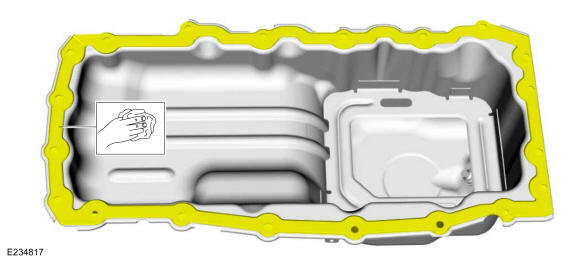

  36. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the oil pan. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD201436Courtesy of FORD MOTOR COMPANY

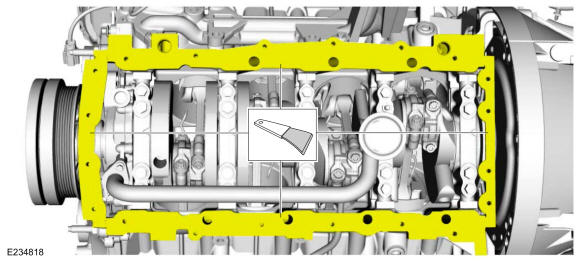

  37. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Automatic transmission shown, manual transmission similar.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD201437Courtesy of FORD MOTOR COMPANY
