Removal And Installation: Flywheel: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The flywheel bolts are torque-to-yield design and are not reusable.

    • Remove the bolts and the flywheel.

    • Discard the bolts.

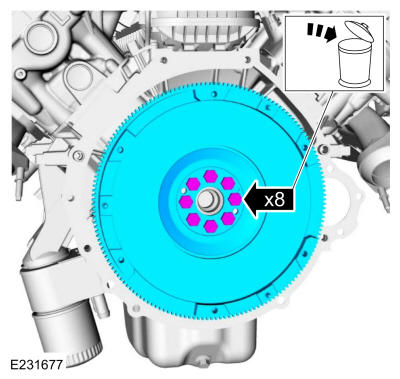

GFD201376Courtesy of FORD MOTOR COMPANY
