Engine Mount LH: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remove the intake manifold. Refer to: Intake Manifold .
2. Remove the cooling fan shroud. Refer to: Cooling Fan Shroud .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

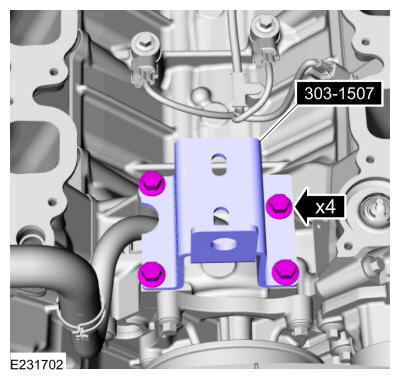

Install Special Service Tool: 303-1507 Brackets, Support.

Courtesy of FORD MOTOR COMPANY

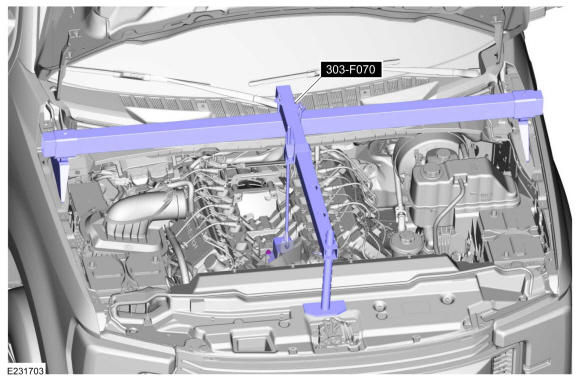

Install Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

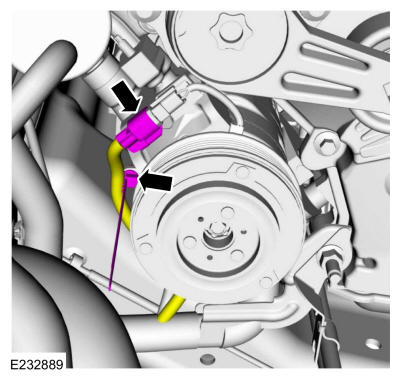

Disconnect the A/C compressor electrical connector and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

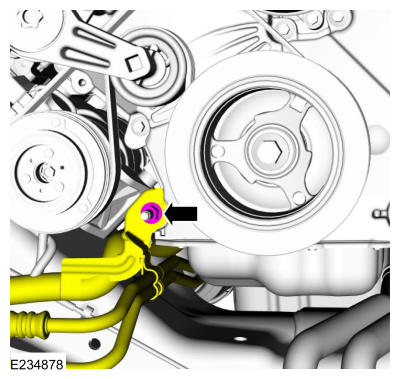

- Remove the nut.
- If equipped with automatic transmission, remove the transmission cooler lines bracket.
- Remove the starter motor wiring harness bracket.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and position the A/C compressor aside.

Courtesy of FORD MOTOR COMPANY
Remove the RH HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
Remove the RH catalytic converter pipe-to-manifold nuts and discard.

Courtesy of FORD MOTOR COMPANY
Remove the LH catalytic converter pipe-to-manifold nuts and discard.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage. New transmission support insulator nuts will be installed during engine installation.

NOTE: If the transmission support insulator stud loosens when the transmission support insulator nut is removed, the stud must be discarded and a new stud installed.

Loosen the transmission support insulator-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY
If equipped with an engine block heater, disconnect the engine block heater electrical connector and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY
- Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the drain plug.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY

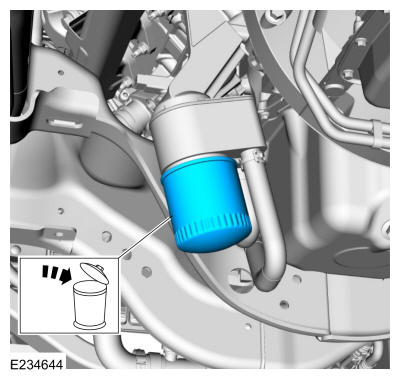

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY

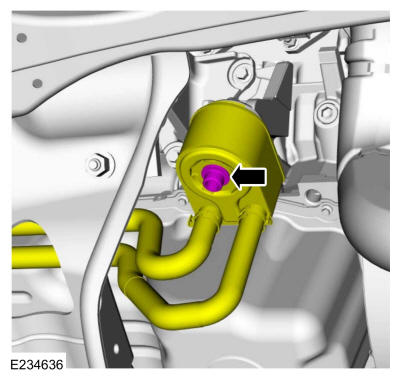

Remove the retainer and position the engine oil cooler aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine mount through bolt must be discarded and a new bolt installed, or damage to the vehicle or engine mount may occur.

NOTE: Only use hand tools when removing the engine mount through bolt or damage to the engine mount may occur.

Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine mount through bolt must be discarded and a new bolt installed, or damage to the vehicle or engine mount may occur.

NOTE: Only use hand tools when removing the engine mount through bolt or damage to the engine mount may occur.

Remove and discard the RH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the engine mount nuts may result in engine mount damage.

NOTE: Only use hand tools when loosening the engine mount nuts or damage to the engine mount may occur.

Remove and discard the LH engine support insulator bracket nuts.

Courtesy of FORD MOTOR COMPANY

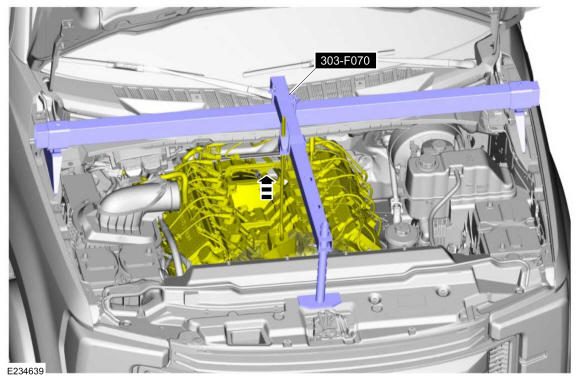

Using the engine support bar, raise the engine. Install Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Remove the LH engine support insulator.

Courtesy of FORD MOTOR COMPANY

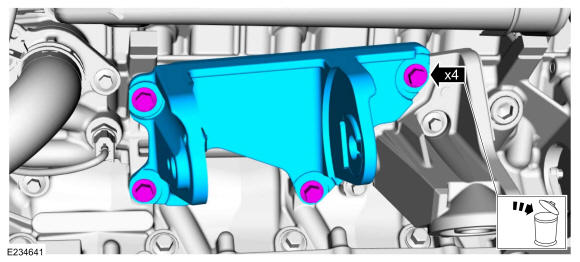

NOTE: The engine support insulator bracket bolts must be discarded and new bolts installed or damage to the vehicle may occur. They are a tighten-to-yield design and cannot be reused.
- If servicing the LH engine support insulator bracket, remove the bolts and the LH engine support insulator bracket.
- Discard the bolts.

Courtesy of FORD MOTOR COMPANY
