Camshaft RH: Installation
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Lubricate the camshaft and camshaft journals with clean engine oil and install the camshaft.

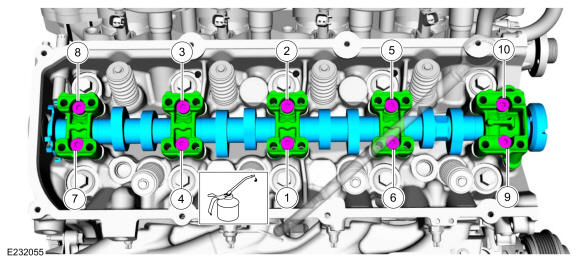

Position the camshaft, camshaft bearing caps in their original locations and install the bolts in the sequence shown in 2 stages.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque:
Stage 1: 53 lb.in (6 Nm)
Stage 2: 45 °
- Install the RH VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
